Flanged Washers GN 898

Material: ST - Steel

Product Family Stainless Steel Quality Class 2

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

Stainless Steel Characteristics

Product description

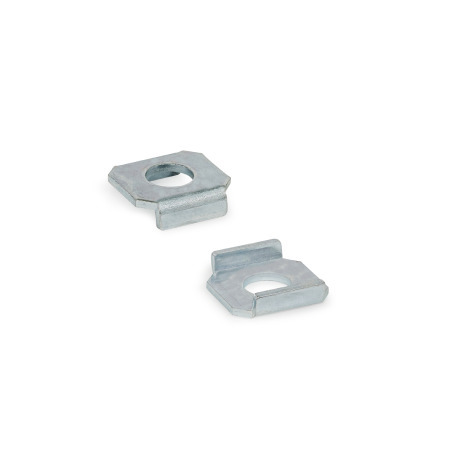

Flanged washers GN 898 are used to attach and position pressure elements on toggle clamps with open clamping arm. The corresponding toggle clamps are listed in the table.

They are supplied in packaging units of 10 pieces each.

Specification

SteelST
Zinc plated, blue passivated

Stainless steelNI AISI 304

RoHS

Your contact

You are looking for a Ganter partner near you?

d Nominal size Steel	Stainless steel	Actual dimension	b	h	l₁	l₂	s	For toggle clamps GN 810 GN 810.1 GN 810.3 GN 810.4 GN 812.1	GN 812	GN 820 GN 820.1 GN 820.3 GN 820.4	GN 820.6	Packaging units

4	4	4,3	7,2	2,5	9	5	0,8	-	-	25	-	10
5	5	5,5	9,8	3,5	12	7,5	1	75	-	75	80	10
6	6	6,5	11,8	4,5	15	9	1,2	130	-	130	-	10
8	8	8,5	15	5,5	18	12,5	1,5	230	200	230	140	10
10	10	10,5	18	6	23	16,5	2	330	300	355	250	10
12	-	13	24	7	30	18	2,5	430 / 530	-	455	-	10
