Product description

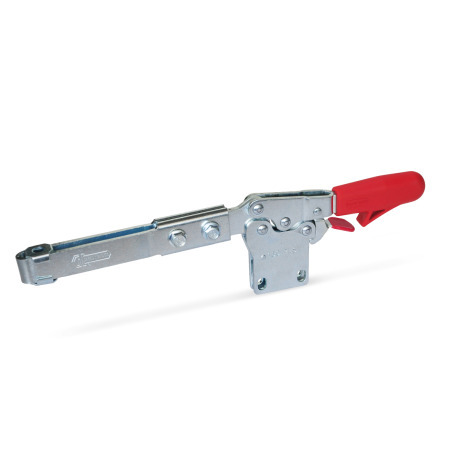

Toggle clamps GN 820.4 have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).
They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.
Toggle clamps in the U-bar version with two flanged washers (type VL) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for type VLC.
Specification
Tensioning mechanism
Steel
- Sheet metal parts
Case hardening steel C10, zinc plated, blue passivated - Bearing pins tempered
- Bearing rivets case- hardened
- Moving parts lubricated with special grease
Handle
Plastic
Red, oil resistant
Flanged washers GN 898 bei Form VL / VLC
Steel
zinc plated, blue passivated
Clamping screw GN 708.1 bei Form VLC
- Steel, zinc plated, blue passivated
- Thrust pad
Chloroprene rubber (CR)- Hardness 85 Shore A ≈
- Vulcanized
- Black
- Type A (flat pressure area)
RoHS
Accessory
GN 804 Clamping Screws
GN 801.4 Sensor Holders
GN 801 Holders for Clamping Screws (for Type VL)
GN 801.1 Clamping Arm Extenders (for Type VL)
GN 801.2 Clamping Arm Extenders (for Type VL)
GN 807 Clamping Screws (Steel)
GN 708.1 Clamping Screws (Steel)
GN 802 Clamping Screws (Steel)
GN 903 Clamping Screws (Steel)
