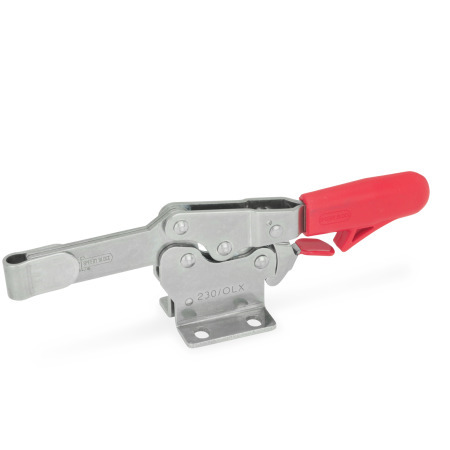

Type: OL - Solid clamping arm, with clasp for welding
Product Family Stainless Steel Quality Class 2
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description
Toggle clamps GN 820.3 are securely locked while in the clamped position to prevent release by accident or due to vibrations. To release the clamp, the lock is disengaged with a single-handed operation.
They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.
Stainless steel toggle clamps in the U-bar version with two flanged washers (type ML) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type MLC.
Stainless steel toggle clamps in the type OL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
Specification
Tensioning mechanism
Stainless steelNI AISI 304
- Moving parts lubricated with special grease
Handle
Plastic
Red, oil resistant
Clasp for typ OL
Stainless steel AISI 304
Flanged washers GN 898 for type ML / MLC
Stainless steel AISI 304
Andrückschraube GN 708.1 bei Form MLC
- Stainless steel AISI 304
- Thrust pad
Chloroprene rubber (CR)- Hardness 85 Shore A ≈
- Vulcanized
- Black
- Type A (flat pressure area)
RoHS
Accessory
GN 801.3 Sensor Holders
GN 801 Holders for Clamping Screws (for Type ML)
GN 801.1 Clamping Arm Extenders (for Type ML)
GN 801.2 Clamping Arm Extenders (for Type ML)
GN 809.1 Clamping Arm Extenders (for Type OL)
GN 807 Clamping Screws (Stainless Steel)
GN 708.1 Clamping Screws (Stainless Steel)
GN 903 Clamping Screws (Stainless steel)
