GN 589 Lifting Points Steel, for Welding

Lifting Points GN 589: Steel, for Welding

Operating instruction GN 589 / GN 589.5

Product description

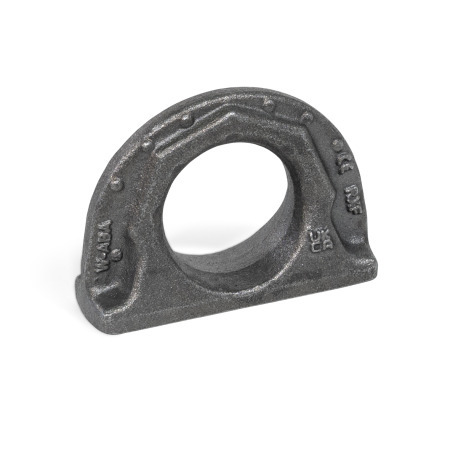

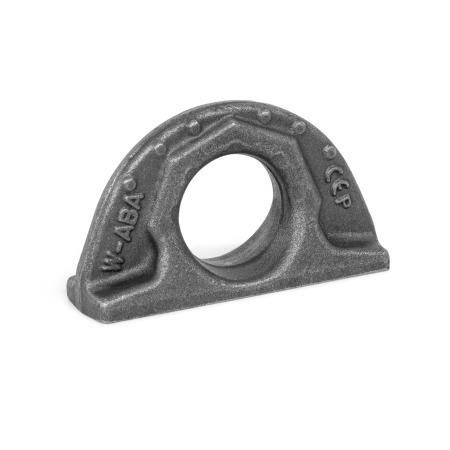

Lifting points GN 589 are intended for suspending lifting gear and lashing elements and are characterized by a particularly low profile. They are welded e.g. to load attachment points or directly onto the load itself and can absorb loads in any direction.

The nominal load capacity specified in the table is clearly marked on the lifting point. It applies to the least favorable load case of the listed load types.

Lifting points GN 589 comply with Machinery Directive 2006 / 42 / EG and DGUV rules GS-HM-36.

Specification

Steel German Material No. 1.6541

Forged
High-tensile tempered
100 % electro magnetic tensile tested to EN 1677
Phosphated

RoHS

GN 589 Lifting Points, Steel, for Welding sketch

Hide technical drawing

Article options / Table

Show / Hide columns

b	d	h₁	h₂	k₁	k₂	Nominal load capacity in t (WLL, SF 4:1)

70	32	38	50	12	22	0,8
100	35	41,5	57	16	30	1,6
137	50	59	80	23	41	3,2
172	60	71,5	99	27	51	5
228	80	95	130	38	70	10

Build & Price

Load Capacity

Show / Hide columns

b	Lifting F1 max. in t	F2 max. in t	Lashing Max. lashing capacity in daN (LC, SF 2:1)

70	0,8	2	1600
100	1,6	4	3200
137	3,5	9	6400
172	5	12	10000
228	10	20	20000

Lifting points are suitable for both lifting and lashing applications. Switching between the two types of use is permitted without restrictions as long as the permissible carrying capacity (WLL) is not exceeded during lashing. If lifting points are used exclusively as lashing points, they can be loaded beyond the permissible carrying capacity up to the maximum lashing capacity (LC).

The specified load values apply to an operating temperature range of –40 °C to +200 °C.

The wear limit or end of service life of the lifting point is easily and reliably discernible based on raised or recessed wear markings. If these are no longer at a different level than the surface due to wear, the service life of the lifting point has been reached.

Welding Instructions

Show / Hide columns

b	Size fillet seam

70	a3
100	a4
137	a6

Welding may only be performed by a qualified welder in accordance with ISO 9606-1.

Safety Instructions

The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at ganternorm.com.

Selected Part (How to order)

Part number

Total (net)

29,35 €

plus VAT 5,58 €
gross 34,93 €

Weight: 0,200 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

73269098

Please note our order discounts.

With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

Create project list

Save as favourite
