Product Family Stainless Steel Quality Class 1
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description

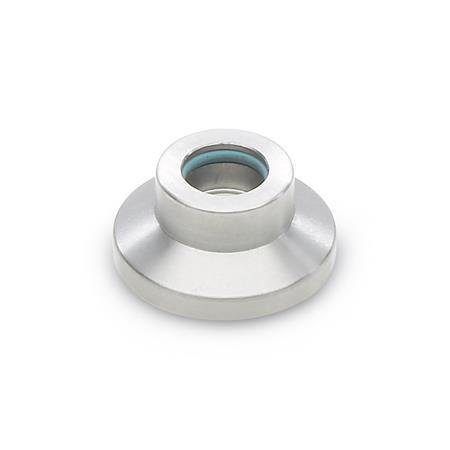

Thrust pads GN 631.5 are used for clamping and pressing when surfaces must be protected against damage. Depending on the application, various standard parts with ball thrust point are available as accessories.
Together with the thrust pad, the ball thrust point forms a ball joint that adapts to clamping surfaces that are uneven or not perpendicular to the screw axis. It also prevents the clamping surface from rotating when the thrust pad is in contact with the clamping surface.
The ball thrust point snaps securely into the thrust pad and can be removed again if needed.
Specification
Stainless steel AISI 303
O-Ring
Fluorine rubber (FKM)
Operating temperature up to 200 °C
RoHS
Accessory
GN 632.1 Grub Screws (Steel)
GN 632.5 Grub Screws (Stainless Steel)
GN 306 Adjustable Hand Levers (Insert Stainless Steel, with Special Tip)
GN 6336.11 Star Knobs
GN 7336.5 Knurled Screws
GN 421.11 Knurled Screws
GN 903 Clamping Screws
GN 903 Clamping Screws (Stainless steel)
GN 933.5 Hex Head Screws
