Cable Glands GN 62444

Material: MS - Brass

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

IP Protection Classes Plastic Characteristics Stainless Steel Characteristics

Product description

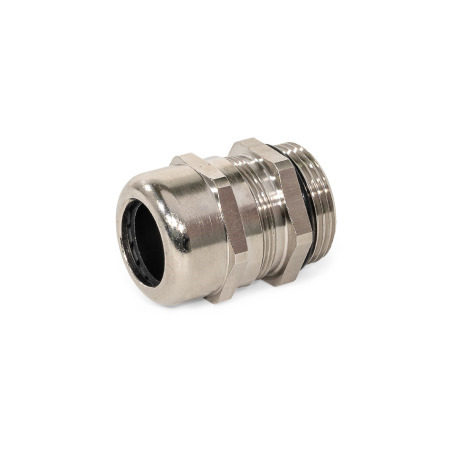

Cable glands GN 62444 are used to feed cables or wires into enclosures, relieve strain, and seal them. Within the specified clamping range, the sealing and clamping effect increases with the cable diameter.

The cable glands can be screwed into an existing internal thread or mounted in a through hole using a mounting nut.

The metal versions include an O-ring for sealing against the enclosure. The plastic version is sealed without an additional sealing ring.

Specification

Housing

BrassMS, nickel-plated
Stainless steelNI AISI 303
PlasticKLG, polyamide (PA)
Gray, RAL 7035

Seal insert
Chloroprene rubber (CR)

Clamping insert
Plastic, polyamide (PA)

O-ring for MS / NI
Acrylonitrile butadiene rubber (NBR)

Operating temperature -40 °C to +100 °C

Protection class IP 68

RoHS

Accessory

Mounting Nuts GN 62444.1
Threaded Plugs GN 62444.2
Multiple Sealing Inserts GN 62444.3
Reducers GN 62444.4

Your contact

You are looking for a Ganter partner near you?

d₁ MS / NI	KLG	d₂	Clamping range Ø	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

M 12 x 1,5	M 12 x 1,5	6	3...6	22	22	23	6	8	14	14	15	14	14	15
M 16 x 1,5	M 16 x 1,5	8	4...8	23	23	25	7	8	17	17	19	18	19	19
M 16 x 1,5	M 16 x 1,5	10	5...10	28,5	28,5	30	7	10	20	22	22	20	22	22
M 20 x 1,5	M 20 x 1,5	12	6...12	26,5	24	29,5	8	10	22	22	24	22	22	24
M 25 x 1,5	M 20 x 1,5	14	10...14	27,7	27,5	31	8	10	24	24	27	27	27	27
M 25 x 1,5	M 25 x 1,5	17	11...17	32,5	32,5	35	8	8	27	27	29	27	27	29
M 32 x 1,5	M 25 x 1,5	18	13...18	33	32,5	37	9	10	30	30	33	34	36	33
M 32 x 1,5	M 32 x 1,5	21	15...21	36	36	42	8	10	34	36	36	34	36	36
M 40 x 1,5	M 32 x 1,5	25	18...25	38	40,6	41	9	15	40	41	42	43	46	42
M 40 x 1,5	M 40 x 1,5	28	19...28	43,5	43,5	47	9	10	43	46	46	43	46	46
M 50 x 1,5	M 40 x 1,5	32	22...32	48	47	51,5	9	18	50	50	53	55	55	53
M 50 x 1,5	-	38	27...38	55	51	-	9	-	58	60	-	58	60	-
-	M 50 x 1,5	38	30...38	-	-	53	-	18	-	-	60	-	-	60
M 63 x 1,5	M 63 x 1,5	44	34...44	53	52	53	14	18	64	65	65	68	70	65

d₁ MS / NI	KLG	Recommended tightening torque in Nm A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

M 12 x 1,5	M 12 x 1,5	2	5,5	2	1	3	1
M 16 x 1,5	M 16 x 1,5	2,5	6,5	2,5	2,5	4	2,5
M 16 x 1,5	M 16 x 1,5	2,5	8	2,5	2,5	4	2,5
M 20 x 1,5	M 20 x 1,5	4	8	4	3,5	5,5	3,5
M 25 x 1,5	M 20 x 1,5	5,5	11	5,5	3,5	6	3,5
M 25 x 1,5	M 25 x 1,5	5,5	14	5,5	3,5	6	3,5
M 32 x 1,5	M 25 x 1,5	9	17	9	3,5	6	3,5
M 32 x 1,5	M 32 x 1,5	6	15	6	5	6	5
M 40 x 1,5	M 32 x 1,5	10	30	10	5	12	5
M 40 x 1,5	M 40 x 1,5	11	17	11	5	12	5
M 50 x 1,5	M 40 x 1,5	20	42	22	5	18	5
M 50 x 1,5	-	20	30	-	8	18	-
-	M 50 x 1,5	-	-	20	-	-	8
M 63 x 1,5	M 63 x 1,5	20	55	20	12	25	12
