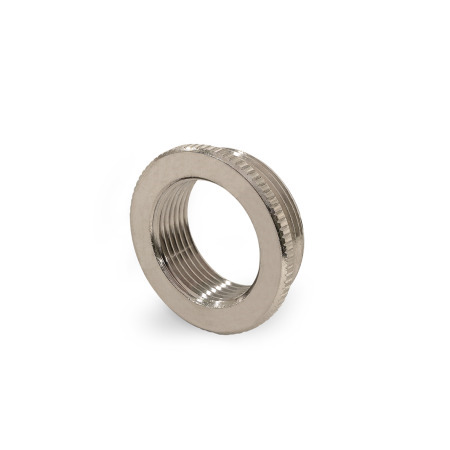

GN 62444.4 Reducers for Cable Glands GN 62444, Brass / Plastic, Metric Thread

Reducers GN 62444.4: for Cable Glands GN 62444, Brass / Plastic, Metric Thread

Werkstoff: MS - Brass

Standard sheet GN 62444.4 (coming soon...)
Print this page

Plastic Characteristics

Product description

Reducers GN 62444.4 enable a transition from a larger to a smaller internal thread, allowing the use of smaller cable glands than the housing was designed for. In combination with a mounting nut, fastening in a through hole is also possible.

Specification

BrassMS
Nickel-plated

PlasticKLG, polyamide (PA)

Glass fiber reinforced
Operating temperature -30 °C to +100 °C
Gray, RAL 7035

RoHS

Accessory

Mounting Nuts GN 62444.1

GN 62444.4 Reducers, for Cable Glands GN 62444, Brass / Plastic, Metric Thread sketch

Hide technical drawing

Article options / Table

Show / Hide columns

Größe	d₁	d₂	d₃	h MS	KLG	Length l MS	KLG	A/F

M 16-M 12	M 16 x 1,5	M 12 x 1,5	20	8	12	6	8	24
M 20-M 16	M 20 x 1,5	M 16 x 1,5	24	9	12	6,5	8	24
M 25-M 20	M 25 x 1,5	M 20 x 1,5	30	10	14	7	8	32
M 32-M 25	M 32 x 1,5	M 25 x 1,5	37	11,5	16	8	10	36
M 40-M 32	M 40 x 1,5	M 32 x 1,5	43	11,5	19	8	12	46
M 50-M 40	M 50 x 1,5	M 40 x 1,5	56	14	21	10	14	55
M 63-M 50	M 63 x 1,5	M 50 x 1,5	66	14	22	10	15	65
