GN 62444.3 Multiple Sealing Inserts for Cable Glands GN 62444, Plastic

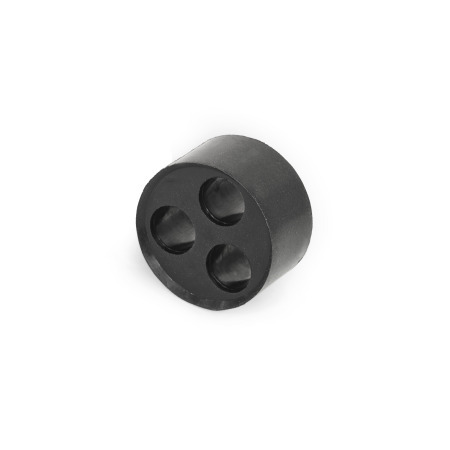

Multiple Sealing Inserts GN 62444.3: for Cable Glands GN 62444, Plastic

Product description

Multiple sealing inserts GN 62444.3 replace the simple seal inserts supplied with cable glands. This allows multiple cables or wires to be fed through a single cable gland, strain-relieved, and sealed.

Specification

PlasticTPE
Thermoplastic elastomer

  • Operating temperature -30 °C to +100 °C
  • Black

RoHS

Hide technical drawing
GN 62444.3 Multiple Sealing Inserts, for Cable Glands GN 62444, Plastic sketch

Article options / Table

Show / Hide columns
d0d1
Bore
Number of holesd2hFor cable gland
8234-10,67,5GN 62444-...-8-...
8324-10,67,5GN 62444-...-8-...
10423-13,38,5GN 62444-...-10-...
10523-13,38,5GN 62444-...-10-...
1243--15,38,5GN 62444-...-12-...
12523-15,38,5GN 62444-...-12-...
1262--15,38,5GN 62444-...-12-...
14423517,49GN 62444-...-14-...
1454--17,49GN 62444-...-14-...
14623417,49GN 62444-...-14-...
17623-19,89,3GN 62444-...-17-...
1782--19,89,3GN 62444-...-17-...
1854--22,211GN 62444-...-18-...
18723422,211GN 62444-...-18-...
18823-22,211GN 62444-...-18-...
1892--22,211GN 62444-...-18-...
2166--25,112,5GN 62444-...-21-...
2174--25,112,5GN 62444-...-21-...
2184--25,112,5GN 62444-...-21-...
2558--29,813GN 62444-...-25-...
258,55--29,813GN 62444-...-25-...

Build & Price

Diameter d0
Bore d1
Number of holes
Werkstoff

Diameter d0
Bore d1
Number of holes
Werkstoff

Selected Part (How to order)

Total (net)
0,77
plus VAT 0,15 €
gross 0,92 €
In stock
Weight: 0,001 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39269097
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
