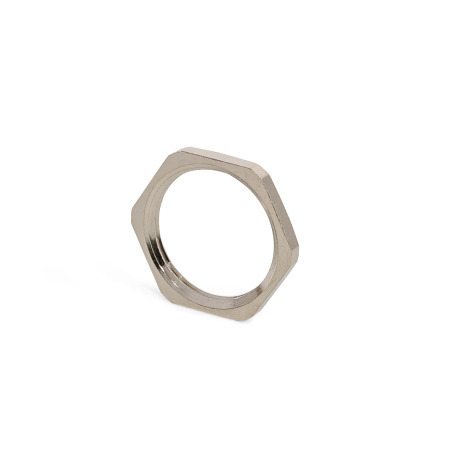

Mounting Nuts GN 62444.1

Material: MS - Brass

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

Plastic Characteristics Stainless Steel Characteristics

Product description

Mounting nuts GN 62444.1 are used for fastening cable glands, reducers or threaded plugs in through holes in enclosures.

Specification

BrassMS
Nickel-plated

Stainless steelNI AISI 303

PlasticKLG, polyamide (PA)

Glass fiber reinforced
Operating temperature -40 °C to +100 °C
Gray, RAL 7035

RoHS

Your contact

You are looking for a Ganter partner near you?

d	b MS	NI	KLG	e ≈ MS	NI	KLG	s MS	NI	KLG

M 12 x 1,5	2,8	2,8	5	16,3	16,3	19,3	15	15	18
M 16 x 1,5	2,8	3	5	20,9	20,9	24,2	19	19	22
M 20 x 1,5	3	3,5	6	26,2	26,6	28,6	24	24	26
M 25 x 1,5	3,5	4	6	31,7	32,7	35	29	30	32
M 32 x 1,5	4	5	7	39,5	38,7	45,9	36	36	41
M 40 x 1,5	5	5	7	50,4	49,6	55,7	46	46	50
M 50 x 1,5	5	5	8	58,5	59,5	65,7	57	55	60
M 63 x 1,5	6	6	8	76,6	76,6	82,3	70	70	75
