GN 823 Indexing Plungers Steel / Stainless Steel, with Operating Lever, with External Thread

Indexing Plungers GN 823: Steel / Stainless Steel, with Operating Lever, with External Thread
Material: ST - Steel
Type: B - Without rest position
Stainless-Steel-Quality-Class-1

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
Overview of Plunger Types Load Rating Information Metric ISO fine thread DIN 13 ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

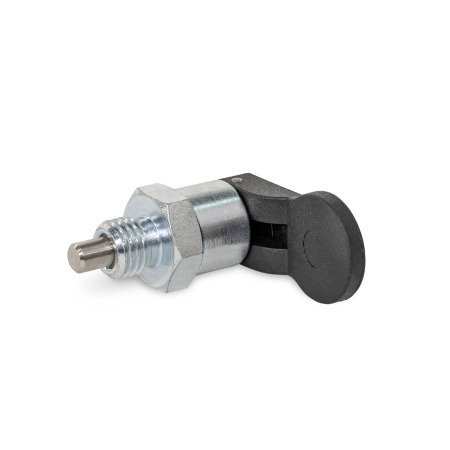

Indexing plungers GN 823 with operating lever can be used to lock carriages in guides, for example. The plunger pin is retracted by simply pressing the operating lever.

Type C also allows actuation by pulling and locking the plunger pin in the retracted position (rest position).

Specification

Guide

  • SteelST
    Zinc plated, blue passivated
  • Stainless steelNI AISI 303

Plunger pin
Stainless steel AISI 303

Lever
Plastic, polyphtalamide (PPA)

  • Glass fiber reinforced
  • BlackSWSW

Pressure spring
Stainless steel AISI 302

RoHS

Accessory

Positioning Bushings GN 412.2 (with Collar)
Positioning Bushings GN 412.4 (with Collar)
Positioning Bushings GN 412.3 (with Ramping Cone)
Positioning Bushings GN 412.5 (with Ramping Cone)
Distance Bushings GN 609.5 (Stainless Steel)
Mounting Blocks GN 412.1 (Zinc Die Casting)
Mounting Blocks GN 612.1 (Steel)
Stainless Steel Mounting Blocks GN 612.1 (Stainless Steel)
Thin Hex Nuts GN 909
Thin Stainless Steel Hex Nuts GN 909.5

GN 823 Indexing Plungers, Steel / Stainless Steel, with Operating Lever, with External Thread sketch
Hide technical drawing
GN 823 Indexing Plungers, Steel / Stainless Steel, with Operating Lever, with External Thread sketch

Article options / Table

Type

BWithout rest position
CWith rest position

Coding

RStandard thread
FFine thread
