Identification no.: 2 - With straight hand lever
Product description

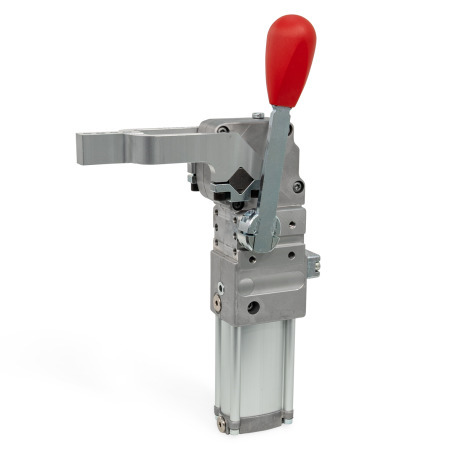

Power clamps GN 8621 hold and position parts, such as sheet metal panels, in automated welding processes or grip and secure parts in transfer and mounting mechanisms. The clamping arm transmits the tensioning or clamping force, which is produced pneumatically or via the hand lever, from the knee lever mechanism to the workpiece. The quick swivel movement enables short cycle times. The pneumatic end position damping ensures smooth and gentle movement.
The hand lever simplifies set-up processes and troubleshooting. It can be mounted on both sides and can be removed in the case of pneumatic operation to avoid accidents or unintended actuation.
The opening angle of the clamping arm can be set or limited at any position. The end positions are detected by sensors integrated into the internal mechanism and do not have to be set. The entire mechanism is encapsulated in the aluminum housing as protection against dirt and water spray. A long service life is ensured by the reinforced, weight-optimized housing and the high-quality needle bearings and joints in the internal mechanism.
Specification
Housing
Aluminum
Square shaft
Steel, nitrided
Double-action air cylinder
Pressure range 2 to 8 bar
Inductive sensor
Zinc die casting
Hand lever
- Shaft, steel, zinc plated, blue passivated
- Handle, plastic, red
Clamping arm for type S
Aluminum, anodized, natural color
Clamp piece, steel, zinc plated, blue passivated
RoHS
Accessory
GN 330 Cables with Connector Coupling (4-pole, 5 or 10 Meters Long)
DIN 6325 Dowel Pins
DIN 7979 Dowel Pins
