Product description

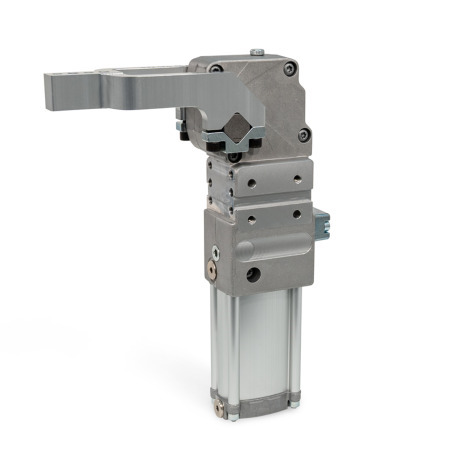

Power clamps GN 8620 hold and position parts, such as sheet metal panels, in automated welding processes or grip and secure parts in transfer and mounting mechanisms. The clamping arm transmits the tensioning or clamping force, which is produced pneumatically, from the knee lever mechanism to the workpiece. The quick swivel movement enables short cycle times. The pneumatic end position damping ensures smooth and gentle movement.
The opening angle of the clamping arm can be set or limited at any position. The end positions are detected by sensors integrated into the internal mechanism and do not have to be set. The entire mechanism is encapsulated in the aluminum housing as protection against dirt and water spray. A long service life is ensured by the reinforced, weight-optimized housing and the high-quality needle bearings and joints in the internal mechanism.
Specification
Housing
Aluminum
Square shaft
Steel, nitrided
Double-action air cylinder
Pressure range 2 to 8 bar
Inductive sensor
Zinc die casting
Clamping arm for type S
Aluminum, anodized, natural color
Clamp piece, steel, zinc plated, blue passivated
RoHS
Accessory
DIN 6325 Dowel Pins
DIN 7979 Dowel Pins
GN 330 Cables with Connector Coupling (4-pole, 5 or 10 Meters Long)
