Product description

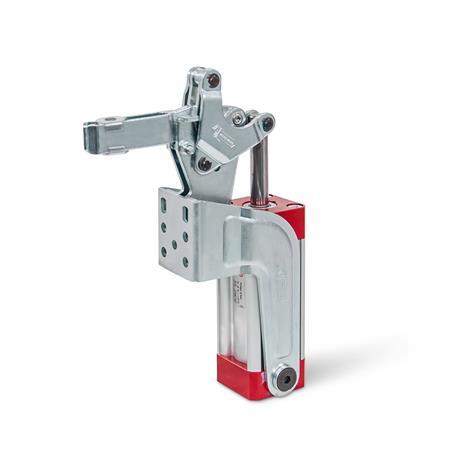

The clamping principle of toggle clamps GN 862 is identical in construction and dimensions to the manually operated vertical toggle clamps GN 812.
To ensure an extended life of the mechanical parts as well as the air cylinders, the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.
Toggle clamps GN 862 have a permanent magnet integrated into the piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
Specification
Tensioning mechanism
Steel
- Sheet metal parts
Case hardening steel C10, zinc plated, blue passivated - Bearing pins tempered
- Bearing rivets case-hardened
- Case-hardened bearing pins for cylinders
- Double-action air cylinder
Max. pressure 6 bar - Moving parts lubricated with special grease
Clasp for type EPV
Steel zinc plated, blue passivated
Flanged washers GN 898 for type APV / CPV
Steel
zinc plated, blue passivated
Clamping screw GN 708.1 for type CPV
- Steel zinc plated, blue passivated
- Thrust pad
Chloroprene rubber (CR)- Hardness 85 Shore A ≈
- Vulcanized
- Black
- Type A (flat pressure area)
RoHS
Accessory
GN 804 Clamping Screws
GN 801 Holders for Clamping Screws
GN 3380 Sensor
GN 807 Clamping Screws (Steel)
GN 708.1 Clamping Screws (Steel)
GN 802 Clamping Screws (Steel)
GN 903 Clamping Screws (Steel)
