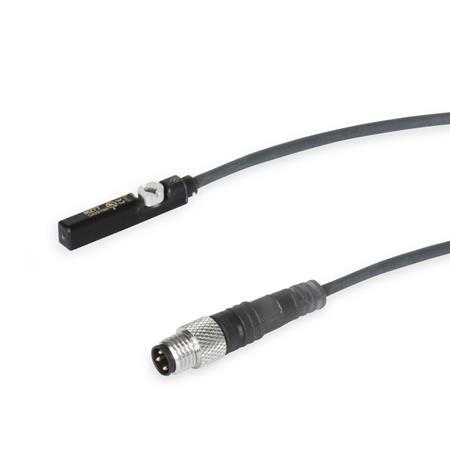

GN 3380 Sensor for pneumatically operated clamps / pneumatically operated cylinders


Product description

Information

The sensor GN 3380 detects the piston position of pneumatic cylinders with magnetic pistons. Cylinders installed in pneumatic clamps enable the position detection of the clamp itself by means of this sensor. Upon reaching the switch point, the sensor electronics deliver a high signal, for instance to a machine controller, and also indicate this switch state via the integrated LED.

For installation, the sensor is inserted into the cylinder groove from above. The side retaining ribs prevent it from falling out. A quarter turn of the fastening screw quickly and reliably locks the sensor into place in the groove.

Specification

Housing
Plastic

Cable (Outer sheath)
Polyurethan PUR
black

Plug
Plastic, 3-pole

Knurled screw connection
Brass, nickel plated
freely rotating

Temperature range: -30 °C to +80 °C

Protection class IP 65, IP 67


RoHS

Technical drawing

Hide technical drawing
GN 3380 Sensor for pneumatically operated clamps / pneumatically operated cylinders sketch

Article options / Table

Contact type

Tfor T-groove cylinder

Connection type

SPlug
Show / Hide columns
Cable length l in meterd
0,33

Build & Price

Contact type

Connection type

Cable length l

Electrical properties

Output function

Normally open (NO)

Output type

PNP

Supply voltage

10 V DC - 30 V DC

Continuous current Ia

≤ 100 mA

Connection type
Plug (S)

3-pole plug M8x1,
with knurled screw connection,
with PUR cable 0,3 m

Switching frequency

1000 Hz

Power consumption

≤ 8 mA

Voltage drop

≤ 2 V

Protection class

lll

Response sensitivity

3 mT

Overrun distance

10 mm

Hysteresis

< 0,8 mT

Repeatability

≤ 0,1 mT

Shock and vibration resistance

30 g, 11 ms / 10 ... 55 Hz, 1 mm

EMC

According to EN 60947-5-2

Switch state LED

Yes

Reverse polarity protection

Yes

Short-circuit protection

Yes

Approvals, conformity declarations
CE marking
UL

Selected Part (How to order)

Weight: 0,014 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Please note our quantity discounts.
With a total value (net) per order:
from 175,00 Euro -> 10 % discount
from 275,00 Euro -> 20 % discount
from 375,00 Euro -> 30 % discount
With a total value (net) per order:
All prices in accordance with our price list No. 52, valid from 1 May 2019, plus VAT only valid for Germany.
