Product description

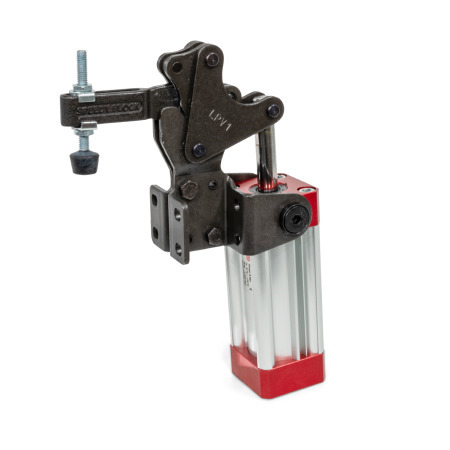

Toggle clamps „Longlife“ GN 962 are equipped with a reinforced body and hardened and ground bearing pins / bushings. This makes them suitable for applications in which substantial forces arise and a long service life is required.
To ensure an extended life of the mechanical parts as well as the pneumatic cylinder, the operating pressure should not exceed 6 bar. In addition, a compressed-air control unit should be mounted in the air intake line.
Toggle clamps GN 962 are equipped with a magnetic piston as standard. This makes end position detection possible in connection with sensors GN 3380.
Specification
Tensioning mechanism
Steel
- Base phosphate-treated
- Bearing pins / Bearing bushings
Hardened / ground - Double-action air cylinder
- with adjustable end position damping
- Max. pressure 6 bar
- Moving parts
Lubricated with special grease
Flanged washers GN 898 for type APV / CPV
Steel
Zinc plated, blue passivated
Clamping screws GN 708.1 for type CPV
- Steel, zinc plated, blue passivated
- Thrust pad
Chloroprene rubber (CR)- Hardness 85 Shore A ≈
- vulcanized
- black
- Type A (flat pressure area)
RoHS
Accessory
GN 3380 Sensor
GN 801 Holders for Clamping Screws
GN 804 Clamping Screws
GN 807 Clamping Screws (Steel)
GN 708.1 Clamping Screws (Steel)
GN 802 Clamping Screws (Steel)
GN 903 Clamping Screws (Steel)
