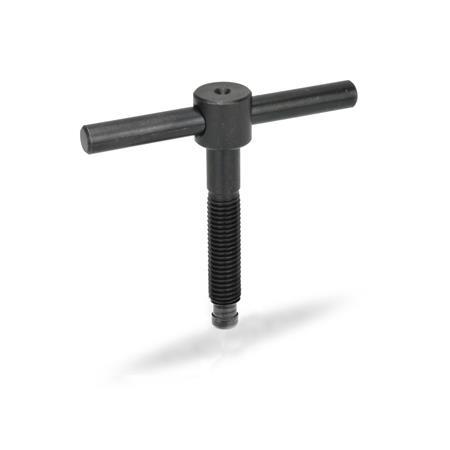

DIN 6304 Tommy Screws Steel, with Fixed Bar

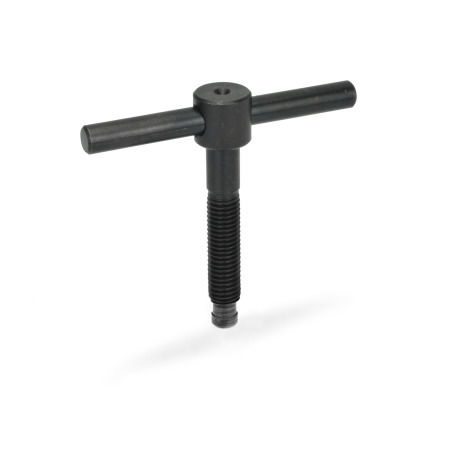

Tommy Screws DIN 6304: Steel, with Fixed Bar
Type: E - Without thrust pad
ISO Fundamental Tolerances Property Classes of Screws

Product description

Tommy screws DIN 6304 are used for clamping and pressing. Combining them with thrust pads or base plates increases the contact surface and allows for angle compensation.

Installation of the thrust pad (Type F) is made easier if the pivot is positioned at an angle against the closed side of the snap ring and then pressed in.

Specification

Tommy screw
Steel

  • Property class 5.8
  • Blackened
  • Thrust point hardened

Thrust pad for type F
Steel

  • Case-hardened
  • Blackened
  • Snap ring
    Spring steel wire

RoHS

Accessory

GN 6311.1 Thrust Pads
GN 6311.3 Foot Plates (Steel)

DIN 6304 Tommy Screws, Steel, with Fixed Bar sketch
Hide technical drawing
DIN 6304 Tommy Screws, Steel, with Fixed Bar sketch

Article options / Table

Type

EWithout thrust pad
FWith thrust pad DIN 6311
Show / Hide columns
d1l1d2d3d4 h11l2l3l4l5 ≈z ≈
M 64050-1254,51050102,25,4
M 85060-146612601536,8
M 106070-18881480203,68,2
M 127080-2010818100204,58,6
M 16759011024121220120205,310,6
M 207590110301615,528140205,612,4

Build & Price
Connection thread d1
Bolt length l1
Type


Connection thread d1
Bolt length l1
Type


Hint for installation (Type F)

The thrust pad has to be held at an angle allowing the circlip to drop to the bottom of its groove with the split end downwards. The thrust point is then offered up to the split end of the circlip at the lowest possible angle and pressed home.
Drawing GN 6311

Selected Part (How to order)

Total (net)
6,70 €
plus VAT 1,27 €
gross 7,97 €
Weight: 0,022 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181595
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 147 pcs. deliverable in 1-2 days
  • For orders of 148 pcs. or more, please contact us regarding delivery time.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

CAD Download Tutorial About CAD-Downloads

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

DIN 6304-M6-40-EDIN 6304-M6-40-FDIN 6304-M6-50-EDIN 6304-M6-50-FDIN 6304-M8-50-EDIN 6304-M8-50-FDIN 6304-M8-60-EDIN 6304-M8-60-FDIN 6304-M10-60-EDIN 6304-M10-60-FDIN 6304-M10-70-EDIN 6304-M10-70-FDIN 6304-M12-70-EDIN 6304-M12-70-FDIN 6304-M12-80-EDIN 6304-M12-80-FDIN 6304-M16-75-EDIN 6304-M16-75-FDIN 6304-M16-90-EDIN 6304-M16-90-FDIN 6304-M16-110-EDIN 6304-M16-110-FDIN 6304-M20-75-EDIN 6304-M20-75-FDIN 6304-M20-90-EDIN 6304-M20-90-FDIN 6304-M20-110-EDIN 6304-M20-110-F
