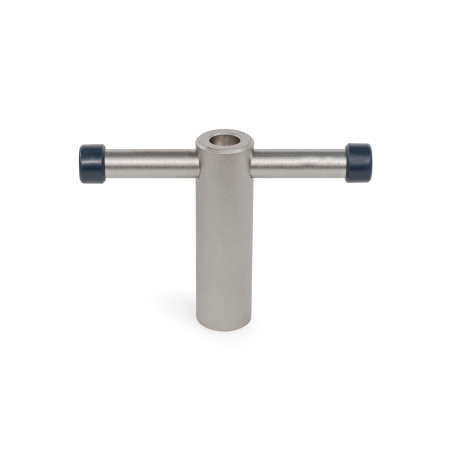

DIN 6307 Tommy Nuts Stainless Steel, with Movable Bar

Tommy Nuts DIN 6307: Stainless Steel, with Movable Bar
Stainless-Steel-Quality-Class-2

Product Family Stainless Steel Quality Class 2

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

Product description

Tommy nuts DIN 6307 are used for clamping and locking.

The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.

Specification

Tommy nut
Stainless steel AISI 304NI


Bar end caps
Plastic, Polyethylen (PE)
gray


Pressure spring
Stainless steel AISI 301


RoHS

Hide technical drawing
DIN 6307 Tommy Nuts, Stainless Steel, with Movable Bar sketch

Article options / Table

Show / Hide columns
d1d2d3l1l2l3
min.
l4l5
M 61466050151545
M 8146605517,51545
M 101888060201763
M 12201010070251981
M 16241312085352397
M 203016140954028112

Build & Price

Connection thread d1
Material

Specifications

Connection thread d1
Material

Selected Part (How to order)

Total (net)
10,57
plus VAT 2,01 €
gross 12,58 €
In stock
incl. material surcharge: 0,19 €
The material surcharge is already included in the price.
Weight: 0,059 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181595
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
