DIN 6306 Tommy Screws Steel, with Movable Bar

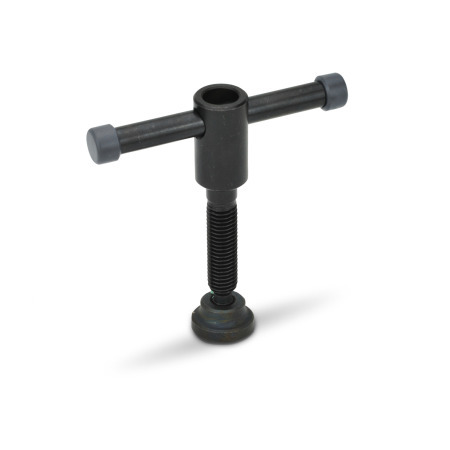

Tommy Screws DIN 6306: Steel, with Movable Bar
Type: E - with thrust pad DIN 6311

Product description

Tommy screws DIN 6306 are used for clamping and pressing. Combining them with thrust pads or base plates increases the contact surface and allows for angle compensation.

The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.

Installation of the thrust pad (type E) is made easier if the pivot is positioned at an angle against the closed side of the snap ring and then pressed in.

Specification

Tommy Screw
Steel

  • Property class 5.8
  • Blackened
  • Thrust point hardened

Bar end caps
Plastic, Polyethylene (PE)
Gray


Thrust pad for type E
Steel

  • Case-hardened
  • Blackened
  • Snap ring
    Spring steel wire

RoHS

Accessory

Thrust Pads GN 6311.1
Foot Plates GN 6311.3

Hide technical drawing
DIN 6306 Tommy Screws, with Movable Bar sketch

Article options / Table

Type

Dwithout thrust pad
Ewith thrust pad DIN 6311
Show / Hide columns
d1l1d2d3d4 h11l2l3l4l5z ≈
M 104050-18883280103,68,2
M 125060-2010835100104,58,6
M 1655709024131240120105,310,6
M 20557090301615,545140105,612,4

Build & Price

Connection thread d1
Bolt length l1
Type


Connection thread d1
Bolt length l1
Type


Selected Part (How to order)

Total (net)
13,48
plus VAT 2,56 €
gross 16,04 €
In stock
Weight: 0,103 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181595
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
