GN 808.1 Gaiters for Universal Joints DIN 808, Rubber / Plastic

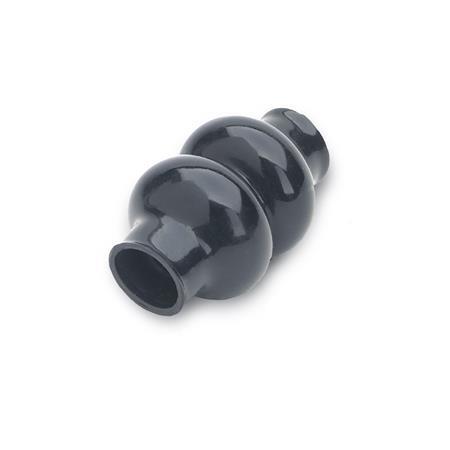

Gaiters GN 808.1: for Universal Joints DIN 808, Rubber / Plastic
Type: D - For double joints
Plastic Characteristics

Product description

Gaiters GN 808.1 give universal joints full protection against ingress of dirt.

At the same time they can be filled with grease which gives long term lubrication for uiniversal joints with friction bearing.

The gaiters are secured at each end with two cable ties, which are supplied each sleeve.

Specification

Rubber for type E
Chloroplene rubber (CR)
Black

Plastic for type D
Chlorure de polyvinyle (PVC)
Black

RoHS

GN 808.1 Gaiters, for Universal Joints DIN 808, Rubber / Plastic sketch
Hide technical drawing
GN 808.1 Gaiters, for Universal Joints DIN 808, Rubber / Plastic sketch

Article options / Table

Type

EFor single joints
DFor double joints
Show / Hide columns
d1
Joint-Ø		d2
Type E		d3
Type E		d4
Type D		d5
Type D		l1
Type E		l2
Type D
16152816353455
2220,54020364565
2524,54824445070
2827,55228515680
3230,55632626590
3635,566--72-
424075407382120
454584--95-
5050925090108155
5856100--122-

Build & Price
Joint diameter d1
Type


Joint diameter d1
Type


Selected Part (How to order)

Total (net)
11,84 €
plus VAT 2,25 €
gross 14,09 €
In stock
Weight: 0,010 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39269097
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
