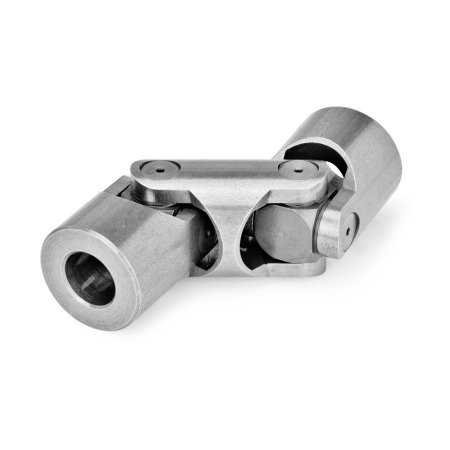

DIN 808 Universal Joints with Friction Bearing Single or Double


DIN 808 Universal Joints with Friction Bearing Bore code: B - Without keyway
Type: DG - Double, friction bearing

Bore code: B - Without keyway
Type: DG - Double, friction bearing

DIN 808 Universal Joints with Friction Bearing Bore code: B - Without keyway
Type: DG - Double, friction bearing

DIN 808 Universal Joints with Friction Bearing Bore code: B - Without keyway
Type: EG - Single, friction bearing

DIN 808 Universal Joints with Friction Bearing Bore code: K - With keyway
Type: DG - Double, friction bearing

DIN 808 Universal Joints with Friction Bearing Bore code: K - With keyway
Type: EG - Single, friction bearing

DIN 808 Universal Joints with Friction Bearing Bore code: V - With square
Type: DG - Double, friction bearing

DIN 808 Universal Joints with Friction Bearing Bore code: V - With square
Type: EG - Single, friction bearing

Standard sheet DIN 808 Print this page Mounting information Permissible r.p.m. and torque / Determining the size ISO Fundamental Tolerances Keyway JS9 DIN 6885, Page 1 Cross holes GN 110.1

Product description

Information

The permissible r.p.m. of universal joints with friction bearing DIN 808 is to a large extent dependent on the type of application such as load, duration, angular disposition as well as lubrication . For over 1000 r.p.m. universal joints with needle bearing should be used

For continuous use ample lubrication is essential. This achieved by fitting the joint with a grease filled gaiter GN 808.1.

Specification

Steel
Plain
Joint bearing areas / pins /
bearing sleeves
Case-hardened

RoHS

On request

With other or unequal bores

Technical drawing

DIN 808 Universal Joints with Friction Bearing sketch

Hide technical drawing

DIN 808 Universal Joints with Friction Bearing sketch

Article options / Table

Bore code

B	Without keyway
K	With keyway
V*	With square

Type

EG	Single, friction bearing
DG	Double, friction bearing

Show / Hide columns

d₁	d₂ H7 Bore	s H 10 Square	l₁ Type EG	l₂ Type DG	l₃	l₄	t +1 max. assembly length of the shaft

16	6	V 6*	34	56	17	22	8
16	8	V 8*	40	62	20	22	11
16	10	V 8*	52	74	26	22	14
22	10	V 10*	48	74	24	26	12
22	12	V 10*	62	88	31	26	18
25	12	V 12*	56	86	28	30	13
25	16	V 12*	74	104	37	30	21
28	14	V 14*	60	96	30	36	13
32	16	V 16*	68	105	34	37	16
32	20	V 16*	86	124	43	38	24
36	18	V 18*	74	114	37	40	17
42	20	V 20*	82	128	41	46	18
42	25	V 20*	108	156	54	48	31
45	22	V 22*	95	145	47,5	50	22
50	25	V 25*	108	163	54	55	26
50	30	V 25*	132	188	66	56	38
58	30	V 30*	122	190	61	68	29
58	32	V 30*	130	198	65	68	33
70*	35	V 35	140	212	70	72	35

* not available from stock, requires a minimum order quantity

Build & Price

Open 3D configurator

GN 110.1 Cross holes (special order)

Show / Hide columns

d₁ H7 s H11	d₁ H7 s H11	d₂ H11 K / B	d₂ x₄ B	d₃	Length l K / V	Length l B

6	-	2	2	M 3	4	4
8	-	3	3	M 5	5,5	5,5
10	-	3	4	M 5	5,5	6
12	14	4	5	M 6	6,5	7
16	18	5	6	M 6	8	9
20	-	5	8	M 6	8	10
22	-	6	8	M 6	10	10
25	-	6	10	M 8	10	14
30	32	6	12	M 8	14	16
35	-	6	12	M 8	16	16

Cross holes in universal joint shafts and in universal shafts are ideal for the production of shaft-hub links using a pin or a thrust screw. For bore holes with a feather key groove or square, they serve to secure the axial position of universal joint and shaft. The d₂ pin bore with H11 tolerance is intended for use with coiled spring pins.
The position of the cross holes / the threaded hole with reference to the hub key slot / the square or of the universal joints is shown in the overview.
Should one of the joint sides be delivered without cross holes / threaded holes, this is indicated with QX on the desired location of the article number.

The cross hole GN 110.1 is to be ordered as a separate item in shopping cart step 1 under note.
How to order: Universal joints DIN 808-16-B6-56-DG with cross hole GN 110.1-QX-GE

How to order GN 110.1

Selected Part (How to order)

Part number

Total (net)

46,40 €

plus VAT 8,82 €
gross 55,22 €

In stock

Weight: 0,060 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €

Quantity

All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.

CAD data

Other data formats

About CAD-Downloads

Save as favourite

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons
