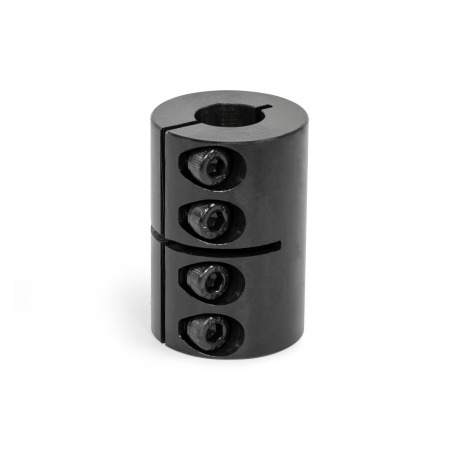

Rigid Couplings GN 2260

Material: ST - Steel
Bore code: B - Without keyway

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

Couplings - Overview of Types Keyways DIN 6885-1 ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

Rigid couplings GN 2260 connect supported shafts or are used as couplings for shaft extensions. They transmit angular positions and high torques precisely and with zero backlash, without compensating for alignment errors and runout tolerances. The slotted design makes them very easy to install.

With the bore code K, the keyway is always integrated into both bores d₂ and d₃. For applications with strong vibrations, thread locking is recommended for the clamping screws.

Specification

Coupling

SteelST
Blackened
Stainless steelNI AISI 303
Plain finish

Socket cap screws ISO 4762

Steel, blackened for ST
Stainless steel for NI

Operating temperature -40 °C to +175 °C

RoHS

Your contact

You are looking for a Ganter partner near you?

d₁	d₂ - d₃ H7	d₄	l₁ ±1	l₂ Max. shaft insertion depth	l₃	Tightening torque of the screws in Nm≈ ST	NI	Rated torque in Nm ST	NI	Max. rotational speed (min^-1)	Moment of inertia in kgm² ST	NI

18	6-6	M 3	30	14,5	5,5	2	1,6	30	25	4000	2,02 x 10^{^-6}	2,04 x 10^{^-6}
24	8-8	M 3	35	17	8,5	3	1,6	50	40	4000	7,91 x 10^{^-6}	8,01 x 10^{^-6}
29	10-10	M 4	45	21,5	10	4,5	3,9	100	90	4000	2,16 x 10^{^-5}	2,19 x 10^{^-5}
29	12-12	M 4	45	21,5	10	4,5	3,9	100	90	4000	2,16 x 10^{^-5}	2,19 x 10^{^-5}
34	14-14	M 5	50	24	11,5	9	7,6	190	160	4000	4,33 x 10^{^-5}	4,39 x 10^{^-5}
34	15-15	M 5	50	24	11,5	9	7,6	190	160	4000	4,33 x 10^{^-5}	4,38 x 10^{^-5}
34	16-16	M 5	50	24	11,5	9	7,6	190	160	4000	4,12 x 10^{^-5}	4,38 x 10^{^-5}
42	20-20	M 6	65	31,5	16	15	13,2	350	300	4000	1,37 x 10^{^-4}	1,39 x 10^{^-4}
45	25-25	M 6	75	36,5	17,5	15	13,2	390	325	4000	2,12 x 10^{^-4}	2,15 x 10^{^-4}
53	30-30	M 6	83	40,5	20,5	15	13,2	475	400	4000	4,51 x 10^{^-4}	4,57 x 10^{^-4}
67	35-35	M 8	95	46,5	25	40	32	1100	925	4000	1,33 x 10^{^-3}	1,34 x 10^{^-3}
77	40-40	M 8	108	53	30	40	32	1325	1100	4000	2,65 x 10^{^-3}	2,69 x 10^{^-3}
85	50-50	M 10	124	61	33	84	63	2250	1875	4000	4,36 x 10^{^-3}	1,41 x 10^{^-3}
