GN 352 Buffers Steel

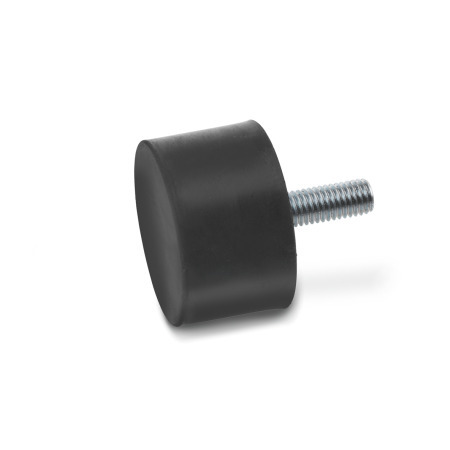

Buffers GN 352: Steel
Type: S - With threaded stud
Overview of Types Vibration Damping Elements / Buffers / Rubber Buffers Technical Instructions Buffers / Rubber Buffers Resilient chracteristics GN 352 / GN 452 Plastic Characteristics

Product description

Buffers GN 352 are used as end stops for linear movements or as support elements for equipment.

They absorb impact energy during collisions, prevent damage due to heavy vibrations and minimize rebound. They also reduce noise and harmful vibrations.

Specification

Rubber
Natural rubber (NR), black

  • Vulcanized to the cover plate
  • Operating temperature -40 °C to +80 °C
  • Hardness Shore A ±5
    • Soft40
    • Medium55
    • Hard70

Cover plate / Threaded bushing / Threaded stud
Steel, zinc plated, blue passivated

RoHS

On request

Rubber in gray

GN 352 Buffers, Steel sketch
Hide technical drawing
GN 352 Buffers, Steel sketch

Article options / Table

Type

EWith internal thread
SWith threaded stud
Show / Hide columns
d1h
Type E
Type S		d2Length lst
8813----813-----M 3613
101015----101520----M 4101,24
151520----10152030---M 4101,44
2015202530--81015202530-M 61826
2515202530--15202530---M 61826
3015203040--1520253040--M 82028
4020304050--2025303840--M 82328
4020-----2025354045--M 1023210
5020303540455020253035404550M 1028210
60304050---202536404560-M 1028210
7030404555--303540505570-M 1028310
752530405055-254050----M 1237312
80------304080----M 14373-
10040505560--405060----M 1641316
1255575----5575-----M 1641316

Build & Price
Outside diameter d1
Height h (Type E)
Height h (Type S)
Thread d2
Type


Hardness



Outside diameter d1
Height h (Type E)
Height h (Type S)
Thread d2
Type


Hardness



Technical Instructions
f59a341a-6f8d-44f7-a416-38eb26fd88ff

Buffers and rubber buffers are best at absorbing compressive forces. Tensile, shearing, flexural and torsional loads can be absorbed to a limited extent but negatively impact the service life. The information on load capacity in the standard sheet or technical section contains non-binding guide values. Exceeding these values can also lead to reduced service life or immediate failure of the part.

The examples show how a design can be modified to turn unfavorable load situations into favorable arrangements with compressive load.

The service life of elastomer elements can be decreased by environmental conditions, such as UV radiation, weathering, hydrocarbons and chemicals, as well as by aging. Positioning with appropriate protection will extend the service life.

Construction Examples

Unfavorable

Favorable
6ecd5af9-5685-4032-8177-f30409240f71 bc2813b2-50ab-43c8-8d8a-d0da38016199
2da6de17-7f53-4871-9a11-f9da6716a45b c432a895-d14c-4d00-b726-a700e0244629

Selected Part (How to order)

Total (net)
0,54 €
plus VAT 0,10 €
gross 0,64 €
In stock
Weight: 0,001 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
