GN 448 Insert Bushings Plastic, for Round Tubes

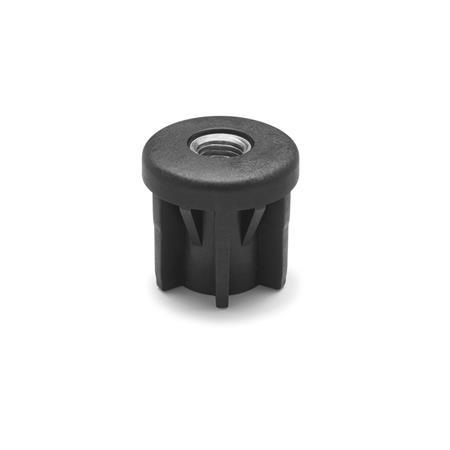

Insert Bushings GN 448: Plastic, for Round Tubes

Original design
code: NDX.T

Plastic Characteristics

Product description

Insert bushing GN 448 offer the possibility of mounting screws in profiled tubes. They are held inside the tube by the slightly tapered insert section.

The values given in the table regarding the static load capacity serve as a guide only and if these are exceeded serious permanent deformation or breakage of the insert bushings could occur.

Specification

Plastic, Polyamide (PA)

Glass fiber reinforced
Black, matte finish
Operating temperature -30 °C to +100 °C
Bushing
Brass
Plain / nickel-plated

RoHS

GN 448 Insert Bushings, Plastic, for Round Tubes sketch

Hide technical drawing

Article options / Table

Show / Hide columns

d₁ Outside-Ø	d₂ Inside-Ø				d₃ Thread Ø - t Thread depth							l₁	l₂	Static load in N M8 ... M16	M20 ... M24

D 20*	D 16	-	-	-	M 8-10	-	-	-	-	-	-	23	5	4500	-
D 25*	D 21	-	-	-	M 8-10	M 10-10	-	-	-	-	-	26	5,5	4500	-
D 30*	D 25	D 26 *	D 27	D 28	M 8-10	M 10-10	M 12-10	M 14-15	M 16-15	-	-	31	6	4500	-
D 32	D 28	-	-	-	M 8-10	M 10-10	-	-	-	-	-	31	6	4500	-
D 35*	D 31	-	-	-	M 10-10	M 12-10	-	-	-	-	-	31	6	4500	-
D 38	D 33	D 34	-	-	M 10-10	M 12-10	M 14-15	M 16-15	-	-	-	38	8	5000	-
D 38	D 35	-	-	-	M 8-10	M 10-10	M 12-10	M 14-15	M 16-15	-	-	38	8	5000	-
D 40*	D 34	-	-	-	M 10-10	M 12-10	-	-	-	-	-	38	8	5000	-
D 42	D 36	-	-	-	M 10-10	M 12-10	-	-	-	-	-	38	8	5000	-
D 42,4	D 37,4	D 38,4	-	-	M 10-10	M 12-10	M 14-15	M 16-15	M 20-20	-	-	38	8	5000	8000
D 42,4	D 39,4	-	-	-	M 8-10	M 10-10	M 12-10	M 14-15	M 16-15	M 20-20	-	38	8	5000	8000
D 45	D 39	-	-	-	M 12-10	M 16-15	-	-	-	-	-	38	8,5	5000	-
D 48	D 42	-	-	-	M 12-10	M 16-15	-	-	-	-	-	45	10	5500	-
D 48,3	D 43,3	D 44,3	-	-	M 12-10	M 14-15	M 16-15	M 20-20	-	-	-	45	10	5500	8500
D 48,3	D 45,3	-	-	-	M 8-10	M 10-10	M 12-10	M 14-15	M 16-15	M 20-20	-	45	10	5500	8500
D 50*	D 44	-	-	-	M 12-10	M 16-15	-	-	-	-	-	45	10	5500	-
D 50,9	D 45,9	D 46,9	D 47,9	-	M 12-10	M 14-15	M 16-15	M 20-20	-	-	-	45	10	5500	8500
D 60,3	D 55,3	D 56,3	D 57,3	-	M 8-10	M 10-10	M 12-10	M 14-15	M 16-15	M 20-20	M 24-20	52	12	5500	8500
