GN 348 Insert Bushings Plastic, for Square Tubes

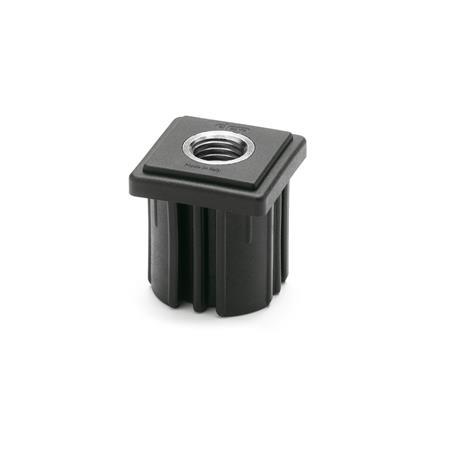

Insert Bushings GN 348: Plastic, for Square Tubes

Original design
code: ND.Q

Plastic Characteristics

Product description

Insert bushings GN 348 offer the possibility of mounting screws in profiled square tubes. The bushings are held in place via the tapered plug-in section in the tube.

The values given in the table regarding the static load capacity serve as a guide only and if these are exceeded serious permanent deformation or breakage of the insert bushings could occur.

The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

Specification

Plastic, Polyamide (PA)

Glass fiber reinforced
Black, matte finish
Operating temperature -30 °C to +120 °C
Bushing
Brass
Plain / nickel-plated

RoHS

GN 348 Insert Bushings, Plastic, for Square Tubes sketch

Hide technical drawing

Article options / Table

Show / Hide columns

s₁	s₂	d	l₁	l₂	t	Tube dimensions outside	inside	Wall thickness	Static load in N (see information)

30	27	M 8	33	6	15	30	27	1,5	17000
30	27	M 10	33	6	15	30	27	1,5	17000
30	27	M 12	33	6	18	30	27	1,5	17000
30	27	M 16	33	6	20	30	27	1,5	17000
40	36	M 8	43	8	15	40	36	2	18000
40	36	M 10	43	8	15	40	36	2	18000
40	36	M 12	43	8	18	40	36	2	18000
40	36	M 16	43	8	20	40	36	2	18000
50	45	M 12	55	10	18	50	45	2,5	20000
50	45	M 16	55	10	20	50	45	2,5	20000
50	45	M 20	55	10	30	50	45	2,5	20000
50	46	M 12	55	10	18	50	45	2	20000
50	46	M 16	55	10	20	50	45	2	20000
50	46	M 20	55	10	30	50	45	2	20000
