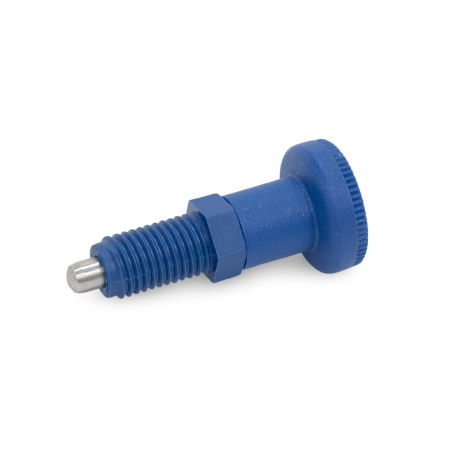

GN 617.2 Indexing Plungers Plastic, Detectable, FDA Compliant, Plunger Pin Stainless Steel, with / without Rest Position

Indexing Plungers GN 617.2: Plastic, Detectable, FDA Compliant, Plunger Pin Stainless Steel, with / without Rest Position
Original design
code: PMT.100-SST-VD /
PMT.101-SST-VD
Material (Plunger pin): NI - Stainless steel
Material / Finish: VDB - Visually detectable, blue, RAL 5005, matte finish
Type: B - Without rest position, without lock nut
Stainless-Steel-Quality-Class-1

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
VD

Product Family VD

Visually detectable standard parts are made of blue plastic. The blue color makes them especially visible to the human eye and, perhaps more importantly, to optical monitoring systems.
Metal detectable standard parts are made of blue plastics that contain additives such as iron oxide. As a result, they are detected by metal detectors as of a particle volume of 0.125 cm³, meaning that even hidden plastic chips can be detected.
All detectable plastic standard parts are made of FDA compliant plastic granulate as per FDA CFR.21 and EU 10/2011.
Show all detectable standard parts
FDA

FDA compliant

Overview of Indexing Plunger Types Metric ISO fine thread DIN 13 General Information Detectable Plastics Plastic Characteristics Stainless Steel Characteristics

Product description

Indexing plungers GN 617.2 are made of blue plastic granulate that is FDA compliant as per FDA CFR.21 and EU 10/2011 as well as visually detectable or metal detectable.

The blue color is especially easy to see with the human eye and is also easy to detect with optical monitoring systems. This allows monitoring of the production process, such as in food production, so that the process can be interrupted if foreign bodies are detected.

The dimensions correspond to those of the GN 617 or GN 617.1 indexing plungers.

Indexing plungers type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

Specification

Guide
Plastic, Polyamide (PA-HP)

  • Glass fiber reinforced
  • FDA compliant material
  • Visually detectable, blue, RAL 5005, matte finish

Plunger pin
Stainless steel AISI 303NI

Knob
Plastic, Polyamide (PA)

  • Visually detectable, blue, RAL 5005, matte finishVDBVDB
  • Not removable

Pressure spring
Stainless steel AISI 302

Lock nut
Plastic, Polyamide (PA)
Visually detectable, blue, RAL 5005, matte finish

Operating temperature -30 °C to +130 °C

RoHS

Accessory

GN 412.1 Mounting Blocks (Zinc Die Casting)
