Product Family Stainless Steel Quality Class 4
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description

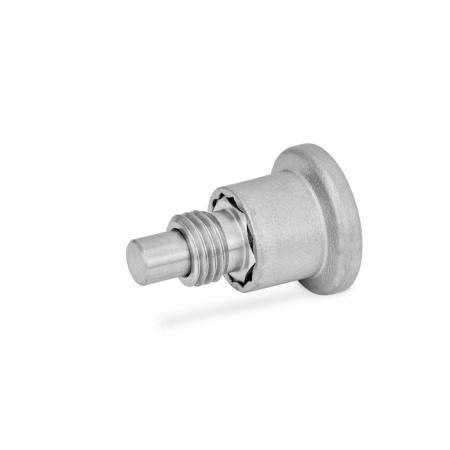

Mini indexing plungers GN 822.10 are distinguished for their small dimensions.
Based on the principle of the mini indexing plungers GN 822, this model combines their clever type of construction with a complete series of all current sizes of bolts and threads.
Pulling the plunger pin will release the hex nut which can then be tightened with an open-end spanner.
In types C and CN, the button can be turned by 30° after retracting the indexing pin, holding it in the “retracted” position using the indexing lock.
Specification
Guide / Plunger pin
Stainless steel AISI 316L
Knob
- Plastic, Polyamide (PA) for Type B / C
Black, matte finish - Stainless steel AISI 316 for Type BN / CN
Matte shot-blasted - Not removable
Pressure spring
Stainless steel AISI 316Ti
RoHS
Accessory
Thin Hex Nuts ISO 8675 (with Fine Thread)
On request
- With red knob
