Original design EWN.B-RC / -LP
Product Family Stainless Steel Quality Class 1
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description

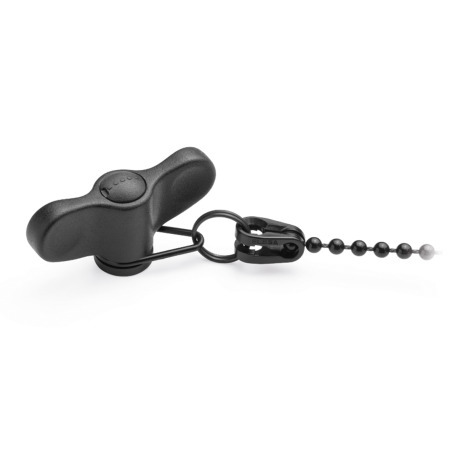

Wing nuts GN 634.13 feature the same premium design and convenient handling as all products of the Ergostyle® family.
The affixed retaining ring allows wing nuts GN 634.13 to be secured with a ball chain or retaining cable to prevent loss. Type P is delivered with an attached retaining ring and a ball chain.
Specification
Knob
Plastic, polyamide (PA)
- Glass fiber reinforced
- Black-gray, matte finish similar to RAL 7021
Threaded bushing
- BrassM
- Stainless steel AISI 303N
Cover cap
Plastic, polyamide (PA)
Black-gray, RAL 7021, matte finish
Retaining ring / Ball chain
Plastic, polyacetal (POM)
Black
Key ring on type P
Stainless steel AISI 301
Chemically blackened
Operating temperature 0 °C to +60 °C
RoHS
Accessory
GN 111.3 Key Rings (Stainless Steel)
GN 111 Ball Chains (Brass)
GN 111.5 Ball Chains (Stainless Steel)
GN 111.2 Retaining Cables (Stainless Steel)
GN 111.8 Retaining Cables (Stainless Steel Quality Class 4)
GN 111.4 Spiral Retaining Cables (Plastic)
