GN 356 Rubber Buffers Steel, Tapered

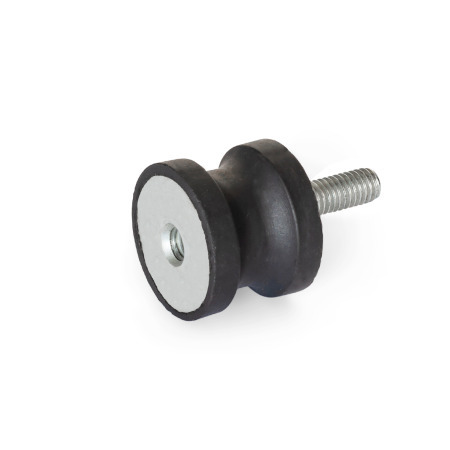

Rubber Buffers GN 356: Steel, Tapered
Type: ES - With internal thread / threaded stud
Overview of Types Vibration Damping Elements / Buffers / Rubber Buffers Technical Instructions Buffers / Rubber Buffers Resilent Characteristics GN 356 / GN 456 Plastic Characteristics

Product description

Rubber buffers GN 356 provide elastic support for equipment such as compressors and pumps.

The tapered shape absorbs side forces better compared with cylindrical rubber buffers. The rubber also does not swell past the cross section d1 under pressure loads.

Specification

Rubber
Natural rubber (NR), black

  • Vulcanized to the cover plates
  • Operating temperature -40 °C to +80 °C
  • Hardness Shore A ±5
    • Soft40
    • Medium55
    • Hard70

Cover plates / Threaded bushings / Threaded studs
Steel, zinc plated, blue passivated

RoHS

On request

Rubber in gray

GN 356 Rubber Buffers, Steel sketch
Hide technical drawing
GN 356 Rubber Buffers, Steel sketch

Article options / Table

Type

EEWith two internal threads
ESWith internal thread / threaded stud
SSWith two threaded studs
Show / Hide columns
d1h
Type EE
Type ES
Type SS		d2d3Length lst
10-10108M 41014
1515151512M 41024
2015151514M 61826
2020202016M 61826
2030303014M 61826
2520202020M 61826
3020202022M 82028
3025252518M 82028
3534343425M 82028
4025252530M 82328
4030303033M 82328
4050505032M 82328
5030303042M 1028210
6060606049M 1028210
7540404060M 1237312

Build & Price
Outside diameter d1
Height h (Type EE)
Height h (Type ES)
Height h (Type SS)
d2
Type



Hardness



Outside diameter d1
Height h (Type EE)
Height h (Type ES)
Height h (Type SS)
d2
Type



Hardness



Technical Instructions
f59a341a-6f8d-44f7-a416-38eb26fd88ff

Buffers and rubber buffers are best at absorbing compressive forces. Tensile, shearing, flexural and torsional loads can be absorbed to a limited extent but negatively impact the service life. The information on load capacity in the standard sheet or technical section contains non-binding guide values. Exceeding these values can also lead to reduced service life or immediate failure of the part.

The examples show how a design can be modified to turn unfavorable load situations into favorable arrangements with compressive load.

The service life of elastomer elements can be decreased by environmental conditions, such as UV radiation, weathering, hydrocarbons and chemicals, as well as by aging. Positioning with appropriate protection will extend the service life.

Construction Examples

Unfavorable

Favorable
6ecd5af9-5685-4032-8177-f30409240f71 bc2813b2-50ab-43c8-8d8a-d0da38016199
2da6de17-7f53-4871-9a11-f9da6716a45b c432a895-d14c-4d00-b726-a700e0244629

Selected Part (How to order)

Total (net)
1,07 €
plus VAT 0,20 €
gross 1,27 €
#artikelLagerbestandAnfrageUsa
Weight: 0,003 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
40169991
