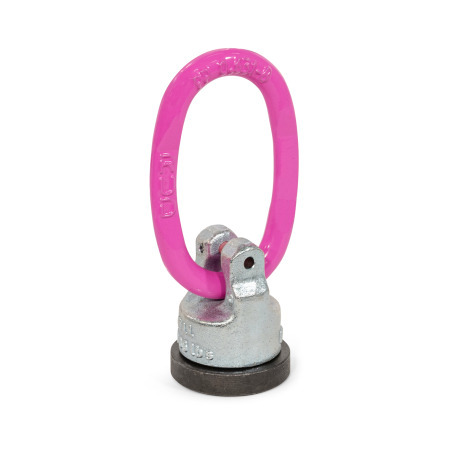

GN 5861 Load Rings Steel, for Welding

Product description

Load rings GN 5861 rotate by means of a ball bearing and are used with separate lifting gear and lashing equipment. They are welded to load-bearing equipment or directly onto the load itself and absorb loads in any direction. The large ring facilitates attachment.

The nominal load capacity is indicated on the ring. Load rings GN 5861 comply with the Machinery Directive 2006/42/EC and DGUV rules GS-HM-36.

Specification

Eye ring
Steel 1.6541

Forged
High-tensile tempered
100% electromagnetically crack tested
to EN 1677-1
Powder coated, pink

Bearing case
Steel 1.6541

Forged
High-tensile tempered
100% electromagnetically crack tested
to EN 1677-1
Galvanically zinc plated

Weld-on flange
Steel 1.6541

High-tensile tempered
100% electromagnetically crack tested
to EN 1677-1

RoHS

GN 5861 Load Rings, Steel, for Welding sketch

Hide technical drawing

Article options / Table

Type

R	With oval ring

Show / Hide columns

d	h₁	h₂	h₃ ≈	h₄ ≈	k₁	k₂	k₃	k₄ ≈	Nominal load capacity in t (WLL)

40	114	105	56	49	9	53	35	79	0,63
46	126	115	53	62	11	57	35	81	1,5
61	148	135	57,5	78,5	13	66	44	93	2,5
78	188	172	74	98	16	77	50	117,5	4
95	242	223	103,5	119,5	19	98	60	158	5
100	266	242	107	135	24	113	65	169,5	8

Build & Price

Load Capacity

Show / Hide columns

Diameter d	Nominal load capacity in t (WLL)	F₁ max. in t	F₂ max. in t

40	0,63	0,63	0,63
46	1,5	1,5	1,5
61	2,5	2,5	2,5
78	4	4	4
95	5	6,7	5
100	8	10	8

The specified load values apply to an operating temperature range of –40 °C to +200 °C. Further information can be found in the operating instructions.

Wear / Service Life / Safety Instructions

If the wear exceeds 10% of the cross-section, the lifting point is worn out and has reached the end of its service life.

If the load ring is bent or shows signs of damage or cracks, it is no longer safe to use. In either case, replacement is required.

The information in the operating instructions must be complied with during installation, commissioning and use. These are included with the product and are available digitally at ganternorm.com.

Fastening / Welding Instructions

Show / Hide columns

Diameter d	Size of weld seam

40	`a4`
46	`a5`
61	HY 3 + a5
78	HY 3 + a6
95	HY 3 + a8
100	HY 3 + a10

The welding must be carried out by a certified welder in accordance with ISO 9606-1.

Selected Part (How to order)

Part number

Total (net)

119,56 €

plus VAT 22,72 €
gross 142,28 €

In stock

Weight: 0,350 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

73269098
