Product description

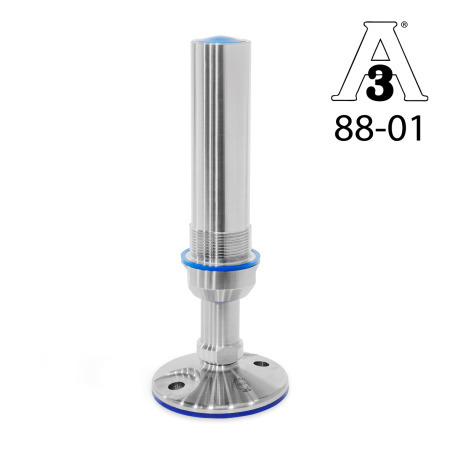

Leveling feet GN 20 with extended adjusting range and mounting holes are suitable for use in hygiene areas.
The bottom seal protects the area beneath the foot plate from dirt. For this, the foot must be pressed down by the weight of the machine. The sealing ring above the adjustment sleeve enables fastening without dead space. Due to the wiper or the joint sealing ring, the moving components are sealed against the environment.
The high quality finish prevents adherence of dirt and facilitates cleaning.
The values listed in the table for static load capacity refer to a purely vertical load in relation to the leveling foot. Under normal operating conditions bending loads or angular loads are not uncommon and result in a reduction of load capacity, which must be taken into consideration.
Specification
Spindle / Screw-in sleeve / Foot plate
Stainless steel AISI 304
Turned
Seals
- Blue
- FDA compliant material
- Sealing ring
NBR, hardness 70 ±5 Shore A - Wiper
TPU, hardness 95 ±5 Shore A - Joint sealing ring
HNBR, hardness 85 ±5 Shore A - Bottom seal
Silicone, hardness 85 ±5 Shore A
Cover cap
TPU, hardness 95 ±5 Shore A
- Matériau conforme à la FDA
- Blue
RoHS
Accessory
GN 7600 Sealing Rings
GN 7607 Wipers
GN 1580 Screws
GN 1581 Screws (with Low-Profile Head)
