GN 115 Latches with Operating Elements


GN 115 Latches, with Operating Elements, Housing Collar Black Type: SG - With star knob
Type: SG - With star knob

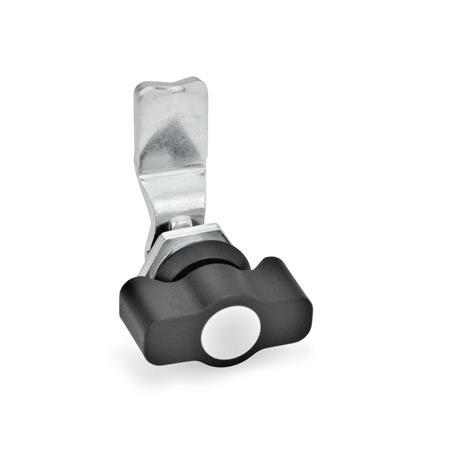

GN 115 Latches, with Operating Elements, Housing Collar Black Type: SG - With star knob GN 115 Latches, with Operating Elements, Housing Collar Black Type: HG - With lever GN 115 Latches, with Operating Elements, Housing Collar Black Type: KG - With wing knob GN 115 Latches, with Operating Elements, Housing Collar Black Type: LG - With lever handle GN 115 Latches, with Operating Elements, Housing Collar Black Type: RG - With knurled knob GN 7336 GN 115 Latches, with Operating Elements, Housing Collar Black Type: SK - With wing knob GN 115 Latches, with Operating Elements, Housing Collar Black Type: ST - With T-handle

Product description

Information

Latches GN 115 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.

Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.

Latches GN 115 are supplied with loosely enclosed latch arm.

Specification

Lock housing
Zinc die casting

  • Housing collar
    Powder coated
    Black, RAL 9005, textured finishSWSW

Operating elements

  • Type SG, SK, ST, RG, KG, HG
    Plastic (Polyamide PA)
    Black, matte finish
  • Type LG
    Zinc die casting
    Powder coated
    Black, RAL 9005, textured finish

Cover cap (Type RG, KG, HG, LG)
Plastic (Polyamide PA)
Light gray, matte finish


All other parts
Steel zinc plated, blue passivated


Protection class IP65


RoHS

Accessory

Protective Guide Plates GN 120.2
Internal Cabinet Handles GN 120.3
Sheet Metal Punches GN 123

Technical drawing

3D
Hide technical drawing
GN 115 Latches, with Operating Elements, Housing Collar Black sketch

Article options / Table

Type

SGWith star knob
SKWith wing knob
STWith T-handle
RGWith knurled knob GN 7336
KGWith wing knob
HGWith lever
LGWith lever handle
Show / Hide columns
Latch distance Ad
Type
SG, RG, KG, HG

Type
SK, ST,LG
h
Type
SG, RG, KG, HG

Type
SK, ST,LG
48131620242832364045283246
610141822263034384250283246

Build & Price

Open 3D configurator
Specifications












Type







Latch distance A
Finish (Locating ring)
SW

Construction and assembly instructions

Skizze GN 115 Montage

For installation, set a hole in the door, cover or hatch as shown in the outline drawing.

Once assembled, the latch is pushed through the bore diameter from the front. The hex nut can then be pushed over the latch from the back and bolted in place.

The required installation bore in the door leaf, is usually generated by punching or laser machining in series production.

The installation bore diameter can also be created by drilling or milling as shown in the outline drawings.

For small series and steel sheets below 2 mm thickness, the Sheet Metal Punches GN 123 are the tool of choice.

Selected Part (How to order)

Total (net)
7,51
plus VAT 1,43 €
gross 8,94 €
In stock
incl. material surcharge: 0,05 €
The material surcharge is already included in the price.
Weight: 0,118 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.
