Product description

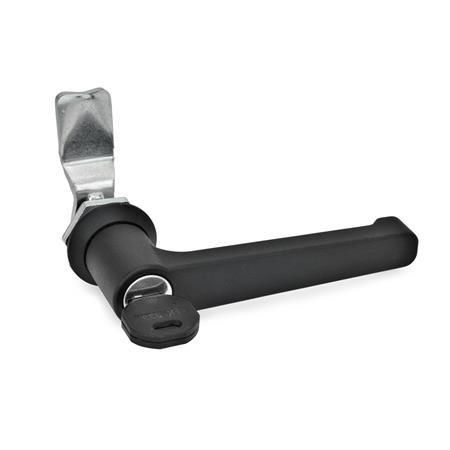

Lockable latches GN 115 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.
Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.
The latches are delivered with 2 keys and loosely enclosed latch arm. The key can be removed in both end positions.
Types with a standard lock allow every lock to be opened with the same key. For the types with different lock, there are more than 200 different lock variants, whose keys are marked by numbers.
Specification
Lock housing
Zinc die casting
Housing collar
Powder coated
Black, RAL 9005, textured finishSW
Operating element
- Plastic, Polyamide (PA) for type SCK / SUK / SCT / SUT
Black, matte finish - Zinc die casting for type LCG / LUG
Powder coated
Black, RAL 9005, textured finish
Other parts
Steel
zinc plated, blue passivated
Key
Nickel silver with plastic hand piece
Protection class IP65 for SCK / SUK / SCT / SUT / LCG / LUG
RoHS
Accessory
Electromechanical Locking Systems GN 120.4
Opening Handles GN 120.1
Protective Guide Plates GN 120.2
Sheet Metal Punches GN 123
