GN 116.1 Rotary Clamping Latches Zinc Die Casting, Operation with Operating Element / Socket Key

Rotary Clamping Latches GN 116.1: Zinc Die Casting, Operation with Operating Element / Socket Key

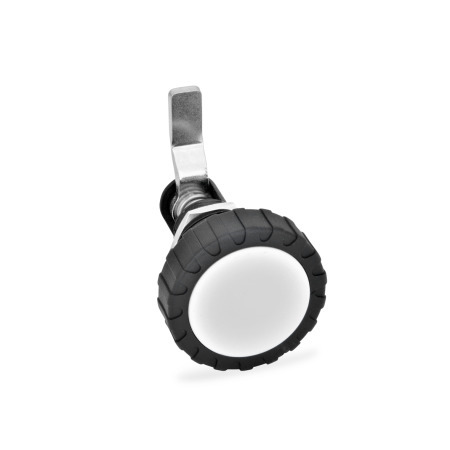

Type: RG - With knurled knob
Overview of Latch Types Plastic Characteristics

Product description

Rotary clamping latches GN 116.1 have a closing mechanism which transfers the rotary movement of the operating element or socket key into a 90° turn and then into a 12 mm (travel distance) axial movement of the latch arm. This configuration allows large closing strokes within the individual key spacings, e.g. in connection with seals.

Latch arms are available with different bend angles to cover a clamping range A1...A5 from 4 to 46 mm. The selected gradations ensure broad overlapping between the clamping ranges.

The permissible tightening torque for the clamping screw is 2 Nm, which brings the axial closing force of the latch arm to about 300 N.

Specification

Lock housing
Zinc die casting
Powder coated
Black, RAL 9006, textured finish

Handle for type RG
Plastic, Polyamide (PA)

  • Operating temperature up to 130 °C
  • Black, matte finish
  • Cover cap
    Light gray, matte finish

Other parts
Steel
Zinc plated, blue passivated

RoHS

Accessory

GN 119.2 Socket Keys
GN 120.1 Opening Handles

GN 116.1 Rotary Clamping Latches, Zinc Die Casting, Operation with Operating Element / Socket Key sketch
Hide technical drawing
GN 116.1 Rotary Clamping Latches, Zinc Die Casting, Operation with Operating Element / Socket Key sketch

Article options / Table

Type

RGWith knurled knob
VK7With square
VK8With square
DKWith triangle
SK6With hex
VDEWith double bit
Show / Hide columns
Clamping range A1 ... A5
(Door thickness + door frame thickness)
A 1 (4...16)A 2 (11...23)A 3 (19...31)A 4 (27...39)A 5 (34...46)
Show / Hide columns
b max.Length l  ≈b max.Length l  ≈b max.Length l ≈b max.Length l ≈b max.Length l ≈
69,5109,512-12201215

Build & Price
Type






Clamping range A KB
Type






Clamping range A KB

Construction and assembly instructions
aa25c43d-03d7-469a-a961-bf6742c967ae

By turning the latch clockwise (right), the latch arm is first turned by 90° and so moved into the closing position.

As the turning continues, the thread pitch (M 10 thread) causes the latch arm to move a maximum of 12 mm in the axial direction until it finally clamps the door against the frame.

When the latch is opened by turning counter-clockwise (left), the latch arm moves back and then releases the door when turned again by 90°.

The friction required for the 90° rotation is generated by the thrust spring.

For installation, set a hole in the door, cover or hatch as shown in the outline drawing.

The latch is inserted through the hole from the front, during which the latch arm must be in the axially open end position and roughly in the middle of the rotary range. The mounting nut can then be pushed over the latch from the back and bolted in place.

The required installation bore in the door leaf, is usually generated by punching or laser machining in series production.

Selected Part (How to order)

Total (net)
20,15 €
plus VAT 3,83 €
gross 23,98 €
incl. material surcharge: 0,10 €
The material surcharge is already included in the price.
Weight: 0,142 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83089000
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 258 pcs. deliverable in 1-2 days
  • For orders of 259 pcs. or more, please contact us regarding delivery time.
