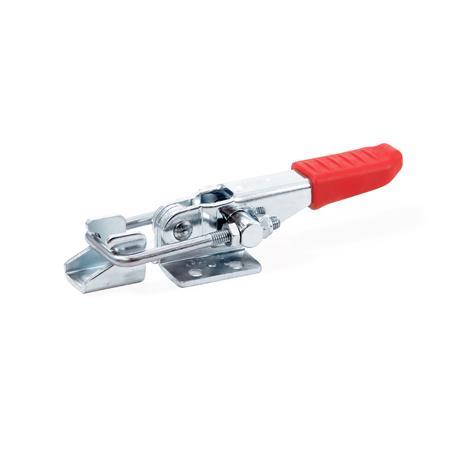

GN 851 Latch Type Toggle Clamps Steel, for Pulling Action

Latch Type Toggle Clamps GN 851: Steel, for Pulling Action
Type: T2 - With square U-bolt, with catch
Operating Principle Toggle Lever / Overview Toggle Clamp Types

Product description

The stroke of the square U-bolts of latch type toggle clamps GN 851 can be adjusted within its range.

In the clamped position the square U-bolt is parallel to the fixing plane of the latch type toggle clamp.

In addition to the standard lengths for the U-bolt latch shown above, more lengths may be achieved by using square U-bolts GN 951.1.

Specification

Tensioning mechanism
Steel

  • Sheet metal parts
    Case-hardened steel C10
    Zinc plated, blue passivated
  • Square U-Bolt
    Steel St 37
    Zinc plated, blue passivated
  • Moving parts lubricated with special grease

Handle
Plastic
Red, oil resistant

RoHS

Accessory

Square U-Bolts GN 951.1

GN 851 Latch Type Toggle Clamps, Steel, for Pulling Action sketch
Hide technical drawing
GN 851 Latch Type Toggle Clamps, Steel, for Pulling Action sketch

Article options / Table

Type

T2With square U-bolt, with catch
TWithout square U-bolt, with catch
Show / Hide columns
SizeFH
Holding capacity
in N		ab1b2b3b4b5d1d2h1 ≈h2
1601600122628212014M 44,32618
3203200164044322822M 66,53025
7007500246054383826M 88,54236
Show / Hide columns
Sizel1 ≈l2
min.		m1m2m3m4m5r ≈
at w2 = 0		sw1
Stroke		w2 ≈
Adjustable
range
1609811195165103522511
320152193210,519714,35434813
70022021389,541,59,519703,55826

Build & Price
Size
Type


Specifications

Size
Type


Selected Part (How to order)

Total (net)
17,04 €
plus VAT 3,24 €
gross 20,28 €
In stock
Weight: 0,084 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
82057000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
