Product Family Stainless Steel Quality Class 1
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description

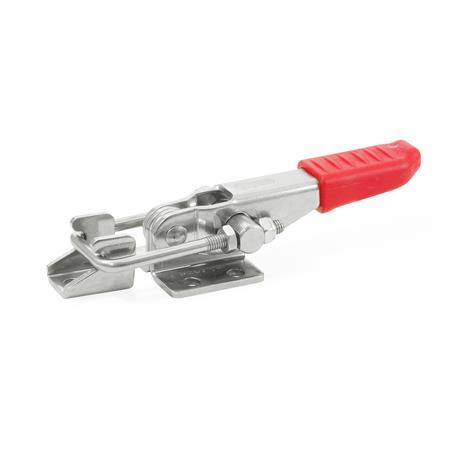

The stroke of the square U-bolts of stainless steel latch type toggle clamps GN 851 can be adjusted within its range.
In the clamped position the square U-bolt is parallel to the fixing plane of the latch type toggle clamp.
In addition to the standard lengths for the U-bolt latch shown above, more lengths may be achieved by using square U-bolts GN 951.1.
Specification
Tensioning mechanism
Stainless steelNI
- Sheet metal parts / Square U-bolt AISI 304
- Pin AISI 303
- Moving parts lubricated with special grease
Handle
Plastic
Red, oil resistant
RoHS
