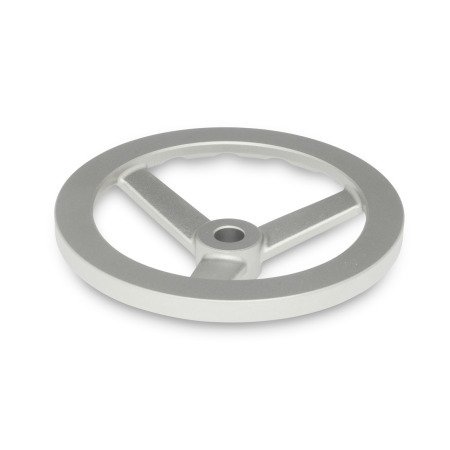

GN 949 Stainless Steel Handwheels


GN 949 Handwheels, Stainless Steel Bore code: B - Without keyway
Type: A - Without handle
Bore code: B - Without keyway
Type: A - Without handle
GN 949 Handwheels, Stainless Steel Bore code: B - Without keyway
Type: A - Without handle GN 949 Handwheels, Stainless Steel Bore code: B - Without keyway
Type: D - With revolving handle GN 949 Handwheels, Stainless Steel Bore code: K - With keyway
Type: A - Without handle GN 949 Handwheels, Stainless Steel Bore code: K - With keyway
Type: D - With revolving handle

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description


The design of stainless steel handwheels GN 949 complies with the requirements of hygiene standards.

The revolving handles are made of duroplast which, in general, provides good resistance to the impact of chemical agents.


Stainless steel precision casting
  • AISI CF-8
  • Hub machined
  • Rim turned
  • Matte shot-blasted

Revolving handle similar to GN 598.1
  • Plastic, Duroplast
    Black, shiny
  • Spindle
    Stainless steel AISI 304


Technical drawing

Hide technical drawing
GN 949 Handwheels, Stainless Steel sketch

Article options / Table

Bore code

BWithout keyway
KWith keyway


AWithout handle
DWith revolving handle
Show / Hide columns
No. of

Build & Price

Open 3D configurator
Handwheel diameter d1
Bore code

Bore diameter d2

GN 110 Cross holes (special order)

GN 110
Show / Hide columns
d1 H7
d1 H7
d2 H11d3Length l
Standard version
Length l
Handwheels DIN 950 / GN 949
to Ø 250
672,5M 34,5-
893M 55,54,5
10113M 55,54,5
12134M 66,55,5
14154M 66,55,5
16175M 687
18195M 687
20215M 687
22236M 6109
24256M 6109
26276M 6109

The connection between the operating element and the shaft consists very often of a cross pin or a grub screw.
As a result the user is faced with relatively high costs since cross holes on operating elements are in general not readily available.
Components with cross holes to GN 110 are not only offered at very competitive prices but they also save the manufacturer unnecessary drawing work. The geometrical form of some of the operating elements, however, does not lend itself to modification to this particular standard.
The pin hole d2 H11 is drilled to suit drive spring pins.

The cross hole GN 110 is to be ordered as a separate item in shopping cart step 1 under note.
How to order: Handwheel DIN 950-GG-160-B14-A with cross hole GN 110-QE

How to order GN 110

Selected Part (How to order)

Total (net)
plus VAT 3,69 €
gross 23,09 €
In stock
incl. material surcharge: 0,50 €
The material surcharge is already included in the price.
Weight: 0,222 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone+49 7723 6507 - 0
RoHS: Yes
