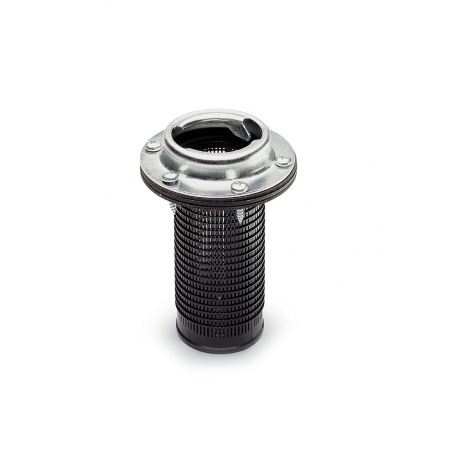

GN 664 Filler Strainers for Vertical Installation

Filler Strainers GN 664: for Vertical Installation

Original design
code: FRB+C / FRF+C

Plastic Characteristics

Product description

Filler strainers GN 664 are available with mounting flange for threaded or bayonet (BA) connection. Filler strainers prevent the ingress of coarse impurities during the refilling process.

Six self-tapping screws are included parts of the order.

Specification

Threaded flange
Plastic
- Glass fiber reinforced
- Black, matte finish

Filler strainer
Plastic
Technoplymer (Polypropylene PP)
- Glass fiber reinforced
- Temperature resistant up to 90 °C
- Black, matte finish

Flange for fitting bayonet
Steel, zinc plated, blue passivated

Seal cork
Impregnated with rubber

RoHS

Accessory

Breather Caps GN 663
Breather Caps GN 774
Breather Caps GN 774.1

On request

Mounting flange without filler strainer

GN 664 Filler Strainer for Vertical Installation sketch

Hide technical drawing

Article options / Table

Show / Hide columns

d₁ Thread	d₂ Bayonet	l₁	d₃	d₄	d₅	d₆	l₂	l₃	l₄	l₅

G 1 1/4	-	94	83	56	-	49	23	9	-	-
-	BA 39	94	83	-	58	49	-	-	20	7

1) Breather caps are to be ordered separately.

Build & Price

Bayonet d₂

BA 39

Thread d₁

G 1 1/4

Strainer length l₁

Mounting dimensions (hole pattern)

Selected Part (How to order)

Part number

Total (net)

11,97 €

plus VAT 2,27 €
gross 14,24 €

In stock

ELESA Code: 9201

Description: FRB+C FLANGIA-BAIO+CEST.FTR.

Weight: 0,130 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

90268080
