GN 159 Hinges Plastic, for Aluminum Profiles

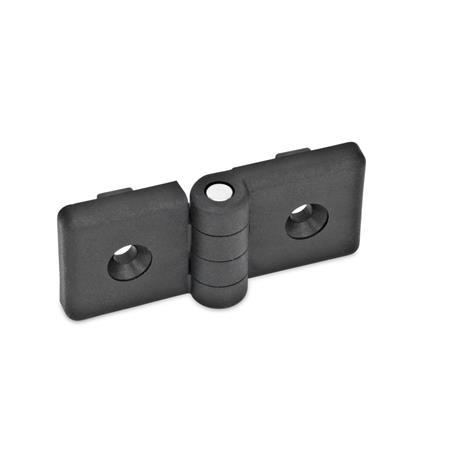

Hinges GN 159: Plastic, for Aluminum Profiles

Original design
code: CFG. / CFG-ERS

Color: SW - Black, matte finish
Identification no.: 1 - Without safety hand levers

Accessories for profile systems

Standard Parts in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Ganter standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

compatible with the common profile systems
for groove widths of 6, 8 and 10 mm
for profiles 30, 40 and 45 mm

Show all compatible products

Overview of Latch Types Load Rating Information for Plastic Hinges Plastic Characteristics

Product description

Hinges GN 159 are suitable for simple installation on standard commercially available extrusions to support the weight of a door by utilising the enclosed rectangular positioning elements. These are simply clipped into recesses in the hinge wings.

For every profile combination s₁ - s₂, the positioning elements in the commercial groove widths b are included.

Specification

Plastic (Polyamide PA)
- Black, matte finishSW
- Gray, matte finishLG
- Temperature resistant up to 130 °C

Pin
Steel, nickel plated

Safety hand levers GN 604.2
- Plastic (Polyamide PA)
  Black, matte finish
- Washer
  Steel, zinc plated

RoHS

Accessory

T-Nuts GN 50b
T-Nuts GN 50i
T-Slot Nuts GN 51b

GN 159 Hinges, Plastic, for Aluminum Profiles sketch

Hide technical drawing

GN 159 Hinges, Plastic, for Aluminum Profiles sketch

Article options / Table

Identification no.

1	Without safety hand levers
2	With safety hand levers

Show / Hide columns

l₁	m₁ Nominal dimension	Actual dimension	m₂ Nominal dimension	Actual dimension	d₁	d₂	h₁	h₂	h₃	h₄	l₂	l₃	l₄	for profile widths s₁ - s₂

54	17	17,5	17	17,5	6,5	8	16	8	16	38	36	27	44	30 - 30
64	17	17,5	22	22,5	6,5	8	16	8	16	38	36	27	44	30 - 40
69	17	17,5	25	25	6,5	8	16	8	16	38	36	27	44	30 - 45
84	17	17,5	32	32,5	6,5	8	16	8	16	38	36	27	44	30 - 60
74	22	22,5	22	22,5	6,5	8	16	8	16	38	36	37	44	40 - 40
79	22	22,5	25	25	6,5	8	16	8	16	38	36	37	44	40 - 45
94	22	22,5	32	32,5	6,5	8	16	8	16	38	36	37	44	40 - 60
84	25	25	25	25	6,5	8	16	8	16	16	36	42	44	45 - 45
99	25	25	32	32,5	6,5	8	16	8	16	38	36	42	44	45 - 60
114	32	32,5	32	32,5	6,5	8	16	8	16	38	36	57	44	60 - 60

Build & Price

Application example

Positioning elements

Skizze GN 159 Positionierelemente

Show / Hide columns

Profile width	b Nut width	a

30	6	2
30	8	2
40 + 45	8	4
40 + 45	10	4
60	10	5
60	12	5

The positioning elements are clipped into the corresponding recesses of the hinge wing.

Selected Part (How to order)

Part number

Total (net)

6,06 €

plus VAT 1,15 €
gross 7,21 €

In stock

ELESA Code: 423911

Description: CFG.30/30 SH-6

Weight: 0,032 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

39263000

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
