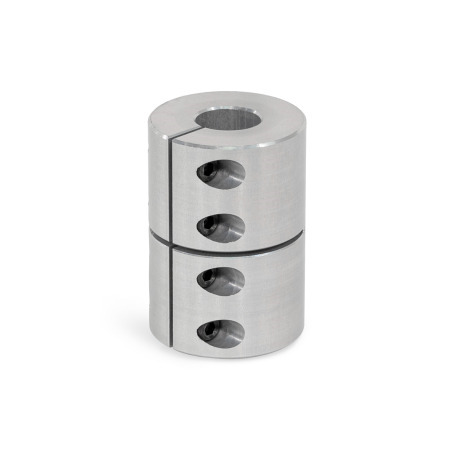

GN 2262 Rigid Couplings Aluminum, Slotted, for High Rotational Speeds

Rigid Couplings GN 2262: Aluminum, Slotted, for High Rotational Speeds
Bore code: B - Without keyway
Couplings - Overview of Types Keyways DIN 6885-1 ISO Fundamental Tolerances

Product description

Rigid couplings GN 2262 connect supported shafts or are used as couplings for shaft extensions. They transmit angular positions at high speeds precisely and with zero backlash, without compensating for alignment errors and runout tolerances. The slotted design makes them very easy to install.

With the bore code K, the keyway is always integrated into both bores d2 and d3.

Specification

Coupling
AluminumAL
Anodized, natural color

Socket cap screws ISO 4762
Steel, blackened

Operating temperature -40 °C to +100 °C

RoHS

GN 2262 Rigid Couplings, Aluminum, Slotted, for High Rotational Speeds sketch
Hide technical drawing
GN 2262 Rigid Couplings, Aluminum, Slotted, for High Rotational Speeds sketch

Article options / Table

Bore code

BWithout keyway
KWith keyway DIN 6885-1 JS9
Show / Hide columns
d1d2 -d3 H8
Recommended
shaft tolerance h7		d4l1l2
Max.
shaft insertion depth		l3Tightening torque
of the screws
in Nm ≈		Rated torque
in Nm		Max. rotational speed (min-1)Moment of inertia in kgm2
166-6M 2221150,51390003,4 x 10-7
208-8M 2241270,52,5310009,2 x 10-7
2510-10M 2,53618914,5250003,4 x 10-6
2512-12M 2,53618914,5250003,4 x 10-6
3214-14M 34020111,510190001 x 10-5
3215-15M 34020111,510190001 x 10-5

Build & Price
Diameter d1
Bore code


Bore d2 -d3
Material

Diameter d1
Bore code


Bore d2 -d3
Material

Selected Part (How to order)

Total (net)
29,58 €
plus VAT 5,62 €
gross 35,20 €
In stock
Weight: 0,010 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
