Once the opening pressure given in the table is exceeded, breather valves GN 883 will vent into a container and so protect against excessive inside container pressure. They also feature highly compact dimensions.
A coding (Type A) or a colour ring (Type B) in yellow (20 - 80 mbar) or green (160 - 240 mbar) indicates the different opening pressure ratings.
The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve. The installation position is vertical to the top.
Assembly instruction:
For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
Valve body
BrassMS
Ball
Steel AISI 5210
Pressure spring
Stainless steel AISI 301
Seal DIN 7603 A
Soft iron 1.0338
(for d1 = M10 x 1: PA6)
Breather (type B)
Stainless steel AISI 304
Temperature resistant from -30 °C to +200 °C
RoHS

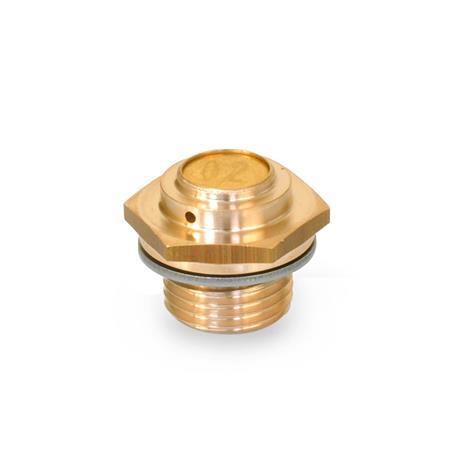

| A | Low design |
| B | High design, with stainless steel cap |
| d1 | d1 | Opening pressure in mbar min. | max. | d2 | d3 | e1 | e2 | l1 | l2 | l3 | l4 | l5 | A/F Type A | Type B | ca. air pas- sage Type A | l/min. Type B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 10 x 1 | - | 20 | 80 | 14,5 | 12,5 | 16 | 18,5 | 6 | 6 | 8 | 7 | 16 | 14 | 17 | 1.2 | 1.8 |
| M 10 x 1 | - | 160 | 240 | 14,5 | 12,5 | 16 | 18,5 | 6 | 6 | 8 | 7 | 16 | 14 | 17 | 1.2 | 1.8 |
| M 12 x 1,5 | - | 20 | 80 | 18 | 12,5 | 19,5 | 18,5 | 6,5 | 6 | 7,5 | 7 | 16,5 | 17 | 17 | 1.2 | 1.8 |
| M 12 x 1,5 | - | 160 | 240 | 18 | 12,5 | 19,5 | 18,5 | 6,5 | 6 | 7,5 | 7 | 16,5 | 17 | 17 | 1.2 | 1.8 |
| M 14 x 1,5 | G 1/4 | 20 | 80 | 20 | 12,5 | 19,5 | 18,5 | 6,5 | 6 | 7,5 | 7,5 | 16,5 | 17 | 17 | 1.2 | 1.8 |
| M 14 x 1,5 | G 1/4 | 160 | 240 | 20 | 12,5 | 19,5 | 18,5 | 6,5 | 6 | 7,5 | 7,5 | 16,5 | 17 | 17 | 1.2 | 1.8 |
| M 16 x 1,5 | - | 20 | 80 | 22 | 12,5 | 25 | 24 | 9 | 11 | 7,5 | 7,5 | 16,5 | 22 | 22 | 1.2 | 1.8 |
| M 16 x 1,5 | - | 160 | 240 | 22 | 12,5 | 25 | 24 | 9 | 11 | 7,5 | 7,5 | 16,5 | 22 | 22 | 1.2 | 1.8 |
| - | G 3/8 | 20 | 80 | 23 | 12,5 | 25 | 24 | 9 | 11 | 7,5 | 7,5 | 16,5 | 22 | 22 | 1.2 | 1.8 |
| - | G 3/8 | 160 | 240 | 23 | 12,5 | 25 | 24 | 9 | 11 | 7,5 | 7,5 | 16,5 | 22 | 22 | 1.2 | 1.8 |
| - | G 1/2 | 20 | 80 | 26 | 12,5 | 31 | 29 | 8,5 | 11 | 8 | 8 | 17 | 27 | 27 | 1.2 | 1.8 |
| - | G 1/2 | 160 | 240 | 26 | 12,5 | 31 | 29 | 8,5 | 11 | 8 | 8 | 17 | 27 | 27 | 1.2 | 1.8 |
| - | G 3/4 | 20 | 80 | 32 | 12,5 | 37 | 35 | 8,5 | 11 | 8 | 8 | 17 | 32 | 32 | 1.2 | 1.8 |
| - | G 3/4 | 160 | 240 | 32 | 12,5 | 37 | 35 | 8,5 | 11 | 8 | 8 | 17 | 32 | 32 | 1.2 | 1.8 |
