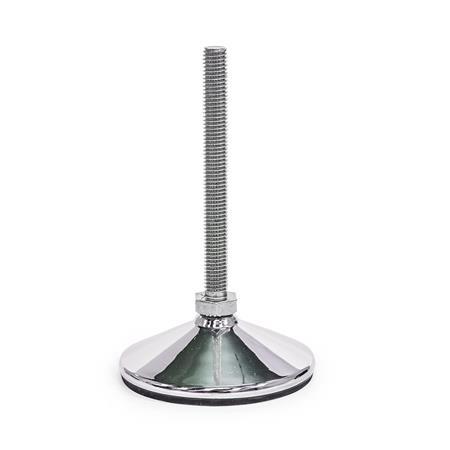

GN 17 Leveling Feet Stainless Steel, FDA compliant

Leveling Feet GN 17: Stainless Steel, FDA compliant

Type (Base plate): C7 - Polished, rubber vulcanized, blue
Versions of threaded stud: S - Without nut, external hex at the bottom

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

FDA compliant

Load Rating of Leveling Feet GN 17 / GN 18 Plastic Characteristics Stainless Steel Characteristics

Product description

Leveling feet GN 17 are suitable for use in aggressive environments.

The inclined surfaces for liquid runoff and the high surface quality of the base plate simplify cleaning and prevent the accumulation of dust or dirt. The FDA compliant and vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used in food-processing areas or the pharmaceutical industry, for example.

The leveling feet are supplied assembled and cannot be disassembled.

Specification

Base plate
Stainless steel AISI 304

Threaded stud
Stainless steel AISI 303

Hex nut ISO 4032
Stainless steel

Rubber pad

Acrylonitrile butadiene rubber (NBR)
- Black for type C3
- Blue for type C7
Silicone rubber (MVQ)
White for type C4
FDA compliant material
Hardness 85±5 Shore A
Vulcanized

RoHS

GN 17 Leveling Feet, Stainless Steel AISI 304, FDA compliant sketch

Hide technical drawing

Article options / Table

Type (Base plate)

C3	Polished, rubber vulcanized, black
C4	Polished, rubber vulcanized, white
C7	Polished, rubber vulcanized, blue

Versions of threaded studs

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom
V	Without nut, external hex at the top and wrench flat at the bottom
VK	With nut, external hex at the top and wrench flat at the bottom
W	With adjustable sleeve, covered thread and wrench flat at the bottom

Show / Hide columns

d₁	d₂	l₁ Version S / SK				Version T / TK						l₂ Version V / VK				l₃ Version W

60	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-
60	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	129	154	179	204
80	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
80	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-
80	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-
80	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	131	156	181	206
80	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	155	180	205	255
80	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	179	229	279	-
100	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	133	158	183	208
100	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	157	182	207	257
100	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	181	231	281	-
120	M 20	-	-	-	-	75	100	125	150	200	250	-	-	-	-	-	-	-	-
120	M 24	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-
120	M 30	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-

d₁	d₂	d₃	h₁	h₂	h₃	l₄	l₅	l₆	s	A/F₁	A/F₂	A/F₄	A/F₅	A/F₆	w in °

60	M 8	-	31	-	-	-	-	-	2	17	-	-	-	-	32
60	M 10	-	31	-	-	-	-	-	2	17	-	-	-	-	32
60	M 12	-	31	-	-	-	-	-	2	17	-	-	-	-	32
60	M 16	24	-	37	33	45	45	29	2	-	12	10	12	20	32
80	M 8	-	33	-	-	-	-	-	2	17	-	-	-	-	26
80	M 10	-	33	-	-	-	-	-	2	17	-	-	-	-	26
80	M 12	-	33	-	-	-	-	-	2	17	-	-	-	-	26
80	M 16	24	-	39	35	45	45	29	2	-	12	10	12	20	26
80	M 20	30	-	39	36	56	56	36	2	-	15	13	16	24	26
80	M 24	35	-	41	38	67	67	42	2	-	19	17	20	30	26
100	M 8	-	35	-	-	-	-	-	2	17	-	-	-	-	22
100	M 10	-	35	-	-	-	-	-	2	17	-	-	-	-	22
100	M 12	-	35	-	-	-	-	-	2	17	-	-	-	-	22
100	M 16	24	-	41	37	45	45	29	2	-	12	10	12	20	22
100	M 20	30	-	41	38	56	56	36	2	-	15	13	16	24	22
100	M 24	35	-	43	40	67	67	42	2	-	19	17	20	30	22
120	M 20	-	-	43	-	-	-	-	2	-	15	-	-	-	20
120	M 24	-	-	46	-	-	-	-	2	-	19	-	-	-	20
120	M 30	-	-	50	-	-	-	-	2	-	24	-	-	-	20
