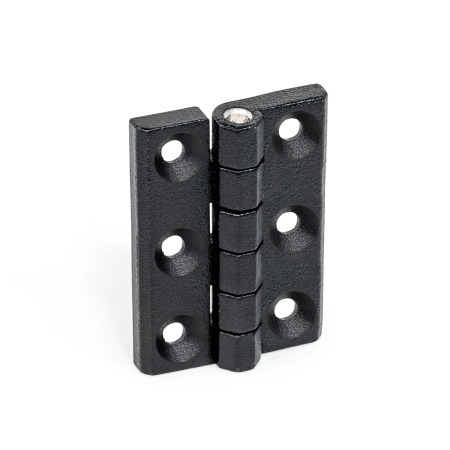

Hinges GN 237 with vertically elongated hinge leafs are made in a compact and sturdy design and require little space on the sides. They are used when a greater load capacity and better transmission of force to the surrounding structure is required.
Type C hinges with threaded studs are shrouded and fastened from the rear side to prevent vandalism.
Specification
Hinge leafs Zinc die castingZD
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Hinge pin
Stainless steel AISI 303
Threaded studs for type C
Stainless steel AISI 304
The material surcharge is already included in the price.
Weight: 0,030 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83021000
