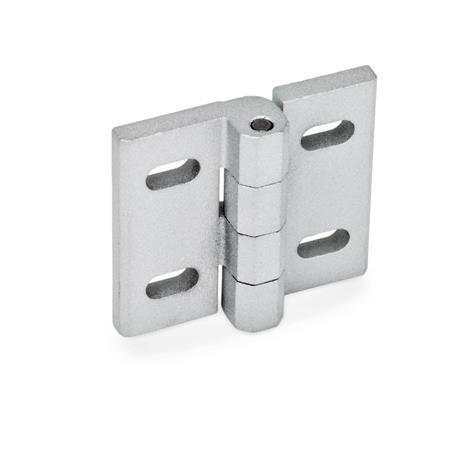

GN 235 Hinges Zinc Die Casting, Adjustable


GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: B - Horizontally adjustable
Finish: SR - Silver, RAL 9006, textured finish
Material: ZD - Zinc die casting
Type: B - Horizontally adjustable
Finish: SR - Silver, RAL 9006, textured finish
GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: B - Horizontally adjustable
Finish: SR - Silver, RAL 9006, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: B - Horizontally adjustable
Finish: SW - Black, RAL 9005, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: D - With through-holes
Finish: SR - Silver, RAL 9006, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: D - With through-holes
Finish: SW - Black, RAL 9005, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: DB - With through-holes, horizontally adjustable
Finish: SR - Silver, RAL 9006, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: DB - With through-holes, horizontally adjustable
Finish: SW - Black, RAL 9005, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: DH - With through-holes, vertically adjustable
Finish: SR - Silver, RAL 9006, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: DH - With through-holes, vertically adjustable
Finish: SW - Black, RAL 9005, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: H - Vertically adjustable
Finish: SR - Silver, RAL 9006, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: H - Vertically adjustable
Finish: SW - Black, RAL 9005, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: HB - Vertically and horizontally adjustable
Finish: SR - Silver, RAL 9006, textured finish GN 235 Hinges, Zinc Die Casting, Adjustable Material: ZD - Zinc die casting
Type: HB - Vertically and horizontally adjustable
Finish: SW - Black, RAL 9005, textured finish

Product description

Information

Hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head.

Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision.

The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.

Specification

Zinc die castingZD
Powder coated
Black, RAL 9005, textured finishSWSW
Silver, RAL 9006, textured finishSRSR
Pin
Stainless steel AISI 316Ti

RoHS

Accessory

Stainless Steel Spacer Plates GN 2370
Stainless Steel Plates GN 2372

Technical drawing

3D
Hide technical drawing
GN 235 Hinges, Zinc Die Casting, Adjustable sketch

Article options / Table

Type

HVertically adjustable
BHorizontally adjustable
HBVertically and horizontally adjustable
DWith through-holes
DHWith through-holes, vertically adjustable
DBWith through-holes, horizontally adjustable
Show / Hide columns
l1
D, DH, H

DB, HB

B
l2bd1d2h1h2h3h4 l3
D, DH, H

DB, HB, B
l4
D, DH, H, DB, HB

B
m1m2
404550455,35,341359,519162116212525
505560556,56,5616,6611,623,2212621263030
606876658,38,3821,4814,929,82633,52633,53636

Build & Price

Open 3D configurator
Specifications

Material

Height l1 (Type D, DH, H)
Height l1 (Type DB, HB)
Height l1 (Type B)
Width l2
Type






Finish
SR
SW

Selected Part (How to order)

Total (net)
7,73
plus VAT 1,47 €
gross 9,20 €
In stock
incl. material surcharge: 0,18 €
The material surcharge is already included in the price.
Weight: 0,090 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

CAD Download Tutorial About CAD-Downloads
Save as favourite

Please enter the code you can find in the picture.

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 235-ZD-40-45-H-SWGN 235-ZD-40-45-D-SWGN 235-ZD-40-45-DH-SWGN 235-ZD-40-45-H-SRGN 235-ZD-40-45-D-SRGN 235-ZD-40-45-DH-SRGN 235-ZD-45-45-HB-SWGN 235-ZD-45-45-DB-SWGN 235-ZD-45-45-HB-SRGN 235-ZD-45-45-DB-SRGN 235-ZD-50-45-B-SWGN 235-ZD-50-45-B-SRGN 235-ZD-50-55-H-SWGN 235-ZD-50-55-D-SWGN 235-ZD-50-55-DH-SWGN 235-ZD-50-55-H-SRGN 235-ZD-50-55-D-SRGN 235-ZD-50-55-DH-SRGN 235-ZD-55-55-HB-SWGN 235-ZD-55-55-DB-SWGN 235-ZD-55-55-HB-SRGN 235-ZD-55-55-DB-SRGN 235-ZD-60-55-B-SWGN 235-ZD-60-55-B-SRGN 235-ZD-60-65-H-SWGN 235-ZD-60-65-D-SWGN 235-ZD-60-65-DH-SWGN 235-ZD-60-65-H-SRGN 235-ZD-60-65-D-SRGN 235-ZD-60-65-DH-SRGN 235-ZD-68-65-HB-SWGN 235-ZD-68-65-DB-SWGN 235-ZD-68-65-HB-SRGN 235-ZD-68-65-DB-SRGN 235-ZD-76-65-B-SWGN 235-ZD-76-65-B-SR
