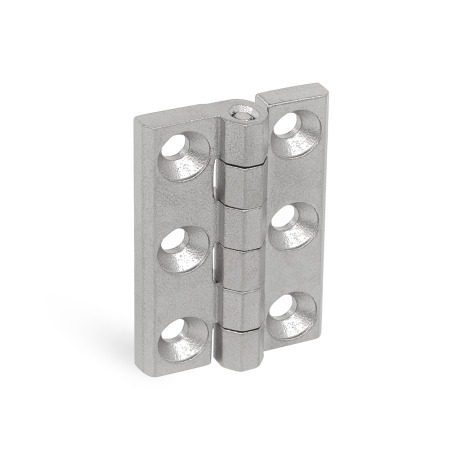

Material: NI - Stainless steel Type: A - 2x3 bores for countersunk screws Finish: GS - Matte shot-blasted finish
Product Family Stainless Steel Quality Class 2
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Hinges GN 237 with vertically elongated hinge leafs are made in a compact and sturdy design and require little space on the sides. They are used when a greater load capacity and better transmission of force to the surrounding structure is required.
Type C hinges with threaded studs are shrouded and fastened from the rear side to prevent vandalism.
Specification
Hinge leafs Stainless steel AISI CF-8NI Matte shot-blasted finishGS
Hinge pin
Stainless steel AISI 316Ti
for l1 = 50 / 60 / 80 lubricated
Threaded studs for type C
Stainless steel AISI CF-8
Casted „in one piece“
The material surcharge is already included in the price.
Weight: 0,037 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83021000
Please note our order discounts.
With a total value (net) per order: from 200,00 € -> 10 % discount from 300,00 € -> 20 % discount from 400,00 € -> 30 % discount
Surcharge for small volume purchases: -> 15,00 Euro for value of goods less than 25,00 € -> 10,00 Euro for value of goods from 25,00 to 49,99 €
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4
