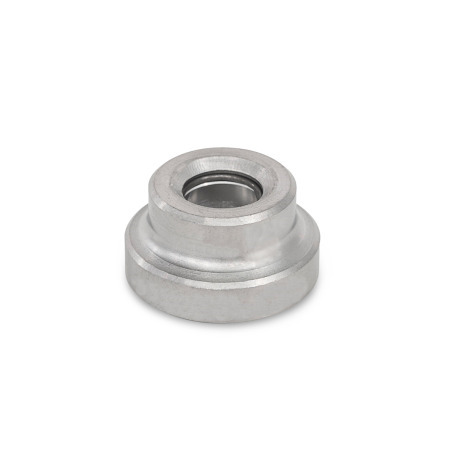

DIN 6311Thrust Padsfor Grub Screws DIN 6332, for Tommy Screws DIN 6304 / DIN 6306, Stainless Steel
Product Family Stainless Steel Quality Class 1
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Thrust pads DIN 6311 are used with grub screws DIN 6332 and tommy screws DIN 6304 or DIN 6306. Due to the pivoting connection between the thrust pin and thrust pad, they adapt to clamping surfaces that are uneven or not perpendicular to the screw axis, and at the same time prevent transmission of the rotational movement of the screw to the clamping surface during clamping.
Assembly is made easier if the thrust pin is positioned at an angle against the closed side of the snap ring and then pressed it in, see assembly instruction.
The material surcharge is already included in the price.
Weight: 0,004 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73182900
Please note our order discounts.
With a total value (net) per order: from 200,00 € -> 10 % discount from 300,00 € -> 20 % discount from 400,00 € -> 30 % discount
Surcharge for small volume purchases: -> 15,00 Euro for value of goods less than 25,00 € -> 10,00 Euro for value of goods from 25,00 to 49,99 €
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4
