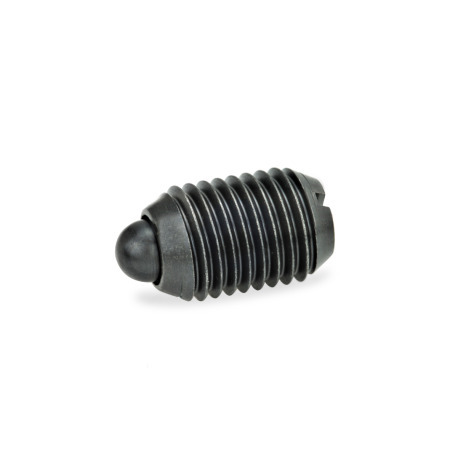

Spring Plungers GN 615.1

Type: B - Steel, standard spring load

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

Stainless Steel Characteristics

Product description

Spring plungers GN 615.1 are used as detents as well as for push-on and push-off applications and ejectors.

Specification

Type B / BS
- Housing
  Steel, blackened
- Bolt
  Steel hardened, blackened

Type BN / BSN
- Housing
  Stainless steel AISI 303
- Bolt
  Stainless steel AISI 303, nitrided

Pressure spring
Stainless steel AISI 631

Marking of type BS / BSN:
Housing with 2 longitudinal markings

RoHS

Accessory

Mounting Blocks GN 3492 (Stainless steel)

d₁ Type B Type BN	Type BS Type BSN	d₂ -0,1	l	w Compression	Spring load in N ≈ standard (Type B / BN) initial	end	Spring load in N ≈ high (Type BS / BSN) initial	end

M 4	-	1,8	9	1,5 +0,3 / -0,4	4,5	12,5	-	-
M 5	-	2,4	12	2	5	13	-	-
M 6	M 6	2,7	14	2	6	17	11	25
M 8	M 8	3,8	16	2	16	33	23	59
M 10	M 10	4,5	19	2,5	19	42	20	54
M 12	M 12	6	22	3,5	22	57	38	96
M 16	M 16	8,5	24	4,5 ±0,3	38	78	50	100
M 20	M 20	10	30	6,5	39	81	52	133
M 24	M 24	13	34	8	72	155	91	223
