GN 324 Spoked Handwheels Aluminum, Powder Coated Black

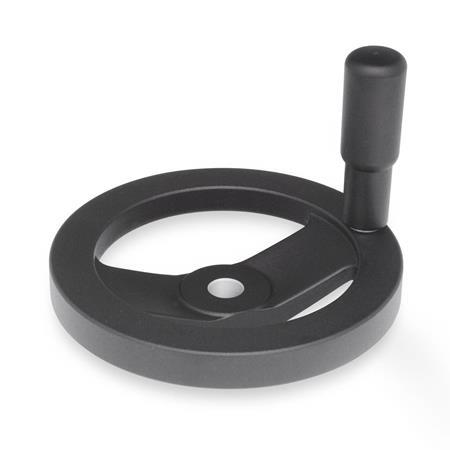

Spoked Handwheels GN 324: Aluminum, Powder Coated Black

Bore code: B - Without keyway
Type: R - With revolving handle

Keyways DIN 6885-1 Cross holes GN 110 (special order) ISO Fundamental Tolerances

Product description

Spoked handwheels GN 324 are used for making adjustments or driving mechanisms.

Type R transmits fast adjustment movements via the revolving handle with decoupling. The revolving handle can be held firmly and safely while cranking.

For precise adjustment, the force applied by hand is transmitted via the rim.

Spoked handwheels can also be ordered with cross holes GN 110.

Specification

Wheel body
Aluminum

Hub machined
Rim
- Turned on all sides
- Radial and axial runout < 0,4
Completely powder coated
Black, textured finish

Revolving handle GN 798
Plastic, Polyamide (PA)

Black, matte finish
Spindle steel
Zinc plated, blue passivated

RoHS

Accessory

Countersunk Washers GN 184 (for Axial Fastening)

GN 324 Spoked Handwheels, Aluminum, Powder Coated Black sketch

Hide technical drawing

Article options / Table

Bore code

B	Without keyway
K	With keyway DIN 6885-1 P9

Type

A	Without handle
R	With revolving handle

Show / Hide columns

d₁	d₂ H7 Bore		b	d₃	l₁	l₂	l₃	r	Ø Handle GN 798

125	12	14	15	31	18	33	61,5	54	22
140	14	16	16,5	36	19	36	76,5	61	24
160	14	16	18	36	20	39	76,5	71	24
200	18	20	20,5	42	24	45	86,5	89	25
250	22	26	23	48	28	51	86,5	113	25

Build & Price

GN 110 Cross holes (special order)

Show / Hide columns

d₁ H7 s H11	d₁ H7 s H11	d₂ H11	d₃	Length l Standard version	Length l Handwheels DIN 950 / GN 949 to Ø 250

6	7	2,5	M 3	4,5	-
8	9	3	M 5	5,5	4,5
10	11	3	M 5	5,5	4,5
12	13	4	M 6	6,5	5,5
14	15	4	M 6	6,5	5,5
16	17	5	M 6	8	7
18	19	5	M 6	8	7
20	21	5	M 6	8	7
22	23	6	M 6	10	9
24	25	6	M 6	10	9
26	27	6	M 6	10	9

The connection between the operating element and the shaft consists very often of a cross pin or a grub screw.
As a result the user is faced with relatively high costs since cross holes on operating elements are in general not readily available.
Components with cross holes to GN 110 are not only offered at very competitive prices but they also save the manufacturer unnecessary drawing work. The geometrical form of some of the operating elements, however, does not lend itself to modification to this particular standard.
The pin hole d₂ H11 is drilled to suit drive spring pins.

The cross hole GN 110 is to be ordered as a separate item in shopping cart step 1 under note.
How to order: Handwheel DIN 950-GG-160-B14-A with cross hole GN 110-QE

Selected Part (How to order)

Part number

Total (net)

25,29 €

plus VAT 4,81 €
gross 30,10 €

In stock

incl. material surcharge: 0,74 €

The material surcharge is already included in the price.

Weight: 0,390 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

84879090

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
