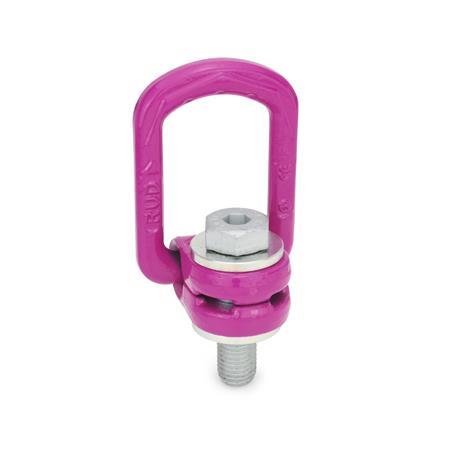

Los estribos de carga giratorios GN 586.1 se pueden plegar y girar en todas las direcciones posibles, transportando toda la carga en cualquier sentido de tracción.
Ofrecen una alta capacidad de carga y cumplen con todos los requisitos en materia de seguridad (factor de seguridad 4).
La capacidad de carga nominal indicada en la tabla está marcada con claridad en el estribo de atornillado. Corresponde a la aplicación de carga más desfavorable de los tipos de carga listados.
Los estribos de carga GN 586.1 cumplen con la Directiva de máquinas 2006/42/CE y han sido aprobados por asociaciones profesionales.
El transpondedor RFID integrado indica e identifica claramente la eslinga y el mecanismo de elevación, por ejemplo, durante las inspecciones regulares exigidas.
Este estándar sustituye a los anteriores estribos de carga GN 586.
Estribo de carga
Acero
Material alemán n.º 1.6541
Estribo de atornillado
Tornillo
Acero, revenido de alta resistencia a la tracción
Acabado: Delta Tone
Casquillo
Acero
zincado galvánico
RoHS
| d1 | d2 | h1 | h2 | h3 | h4 | k1 | k2 | k3 | k4 | k5 | l1 | l2 | r | sw1 | sw2 | Par de apriete en Nm | Carga nominal en t (WLL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 8 | 24 | 87 | 75 | 40 | 35 | 12 | 52 | 34 | 75 | 45 | 11 | 30 | 32 | 13 | 5 | 30 | 0.63 |
| M 10 | 24 | 87 | 75 | 39 | 36 | 12 | 52 | 34 | 75 | 45 | 15 | 30 | 32 | 17 | 6 | 60 | 0.9 |
| M 12 | 26 | 87 | 75 | 38 | 37 | 12 | 52 | 34 | 75 | 45 | 18 | 32 | 32 | 19 | 8 | 150 | 1.35 |
| M 16 | 30 | 99 | 85 | 39 | 46 | 13,5 | 56 | 38 | 86 | 47 | 22 | 34,5 | 38 | 24 | 10 | 150 | 2 |
| M 20 | 45 | 127 | 110 | 55 | 55 | 16,5 | 82 | 54 | 113 | 64 | 32 | 50 | 48 | 30 | 12 | 400 | 3.5 |
| M 24 | 45 | 143 | 125 | 67 | 58 | 18 | 82 | 54 | 130 | 78 | 37 | 50 | 48 | 36 | 14 | 760 | 4.5 |
| M 30 | 60 | 170 | 147 | 67 | 80 | 22,5 | 103 | 65 | 151 | 80 | 49 | 60 | 67 | 46 | 17 | 1000 | 6.7 |
|
Método de montaje |
|
|
|
|
|
|
|
|
|||
|
Cantidad |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
3 y 4 |
3 y 4 |
3 y 4 |
|
|
Ángulo de |
0° a 7° |
90° |
0° a 7° |
90° |
0° a 45° |
45° a 60° |
asim. |
0° |
45° a 60° |
asim. |
|
|
Factor |
1 |
1 |
2 |
2 |
1,4 |
1 |
1 |
2,1 |
1,5 |
1 |
|
|
M 8 |
0,63 t |
0,63 t |
1.26 t |
1.26 t |
0.88 t |
0.63 t |
0.63 t |
1.32 t |
0.95 t |
0.63 t |
|
|
M 10 |
0.90 t |
0.90 t |
1.80 t |
1.80 t |
1.30 t |
0.90 t |
0.90 t |
1.90 t |
1.35 t |
0.90 t |
|
|
M 12 |
1.35 t |
1.35 t |
2.70 t |
2.70 t |
1.90 t |
1.35 t |
1.35 t |
2.84 t |
2.00 t |
1.35 t |
|
|
M 16 |
2.00 t |
2.00 t |
4.00 t |
4.00 t |
2.80 t |
2.00 t |
2.00 t |
4.25 t |
3.00 t |
2.00 t |
|
|
M 20 |
3.50 t |
3.50 t |
7.00 t |
7.00 t |
4.90 t |
3.50 t |
3.50 t |
7.35 t |
5.25 t |
3.50 t |
|
|
M 24 |
4.50 t |
4.50 t |
9.00 t |
9.00 t |
6.30 t |
4.50 t |
4.50 t |
9.50 t |
6.75 t |
4.50 t |
|
|
M 30 |
6.70 t |
6.70 t |
13.40 t |
13.40 t |
9.50 t |
6.70 t |
6.70 t |
14.10 t |
10.00 t |
6.70 t |
|
|
The load capacity table shows the maximum loads in metric tons in relation to the mounting method at an operating temperature of -40 °C to +100 °C. The nominal load capacity refers to the most disadvantageous loading conditions, whereby a safety factor of 4 is taken into account for all values. The rotating load ring GN 586.1 may only be used if it is screwed on in accordance with the minimum screw-in length and set in the tension direction. The screw-on surface has to be plane and at a right angle to the threaded hole. When firmly mounted, the load ring must rotate freely by 360° and must not rest on edges or other lifting gear, e.g. on crane hooks. Rotating load rings are not suitable for permanent rotary movements under load. The operating instruction contains further guidelines and is included with every load ring (see also at www.ganternorm.com/en/service). |
|
||||||||||
