GN 9534 Position Indicators Plastic, Mechanical Counter, for Configurable Profile Linear Actuators

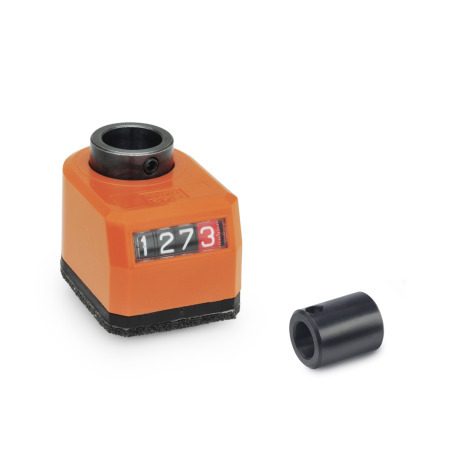

Position Indicators GN 9534: Plastic, Mechanical Counter, for Configurable Profile Linear Actuators
Original design DD51 / DD52R
Installation position: R - on the chamfer, below
Color: O - Orange, RAL 2004, shiny finish
Stainless-Steel-Quality-Class-1

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
ISO Fundamental Tolerances Plastic Characteristics Stainless Steel Characteristics

Product description

Position indicators GN 9534 are designed for attachment to configurable profile linear actuators. They are mounted to the spindle stud of the linear actuator using an adapter bushing and a grub screw. The directly driven counter with digital position display must be matched to the pitch of the threaded spindle.

The housing is welded by ultrasound, making it particularly sturdy, tight and compact. The foam rubber seal prevents the transmission of vibration to the counter and serves as a seal.

Specification

Hollow shaft / Adapter bushing

  • SteelS, blackened
  • Stainless steelN AISI 304
  • Sealed with an O-ring

Housing
Plastic, polyamide (PA)

  • Orange, RAL 2004, shiny finishOO
  • Gray, RAL 7035, shiny finishGG
  • Operating temperature 0 °C to +80 °C
  • Oil and solvent resistant

Sight glass
Plastic, polyamide (PA-T), transparent

Counter

  • Digits white
  • Pre-decimal positions highlighted black
  • Decimal positions highlighted red
    with additional scale

Grub screw DIN 916

  • Steel, blackened for S
  • Stainless steel for N

RoHS

GN 9534 Position Indicators for Configurable Profile Linear Actuators, Mechanical Counter sketch
Hide technical drawing
GN 9534 Position Indicators for Configurable Profile Linear Actuators, Mechanical Counter sketch

Article options / Table

Type

RDigits ascending clockwise
LDigits ascending anti-clockwise

Installation (Front view)

Non the chamfer, above
Ron the chamfer, below
Show / Hide columns
s
Linear actuator		p
Spindle pitch
Linear actuator
Counter		bd2 H7d3l1l2l3m1m2m3Grub screwMax.
revolutions per minute
301,5001.53382033265,530,516,522M 41500
303003.03382033265,530,516,522M 41500
5020002.04812293730643,52330M 5625
5040004.04812293730643,52330M 5625

Build & Price
Linear actuator s
Spindle pitch p
Type


Material


Installation position


Color
Gray
Orange
Specifications

Linear actuator s
Spindle pitch p
Type


Material


Installation position


Color
Gray
Orange

Selected Part (How to order)

Total (net)
53,29 €
plus VAT 10,13 €
gross 63,42 €
In stock
Weight: 0,059 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
90318080
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
