GN 820.3 Toggle Clamps Stainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base


GN 820.3 Toggle Clamps, Stainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base Material: NI - Stainless steel
Type: MLC - Forked clamping arm, with two flanged washers and clamping screw GN 708.1
Material: NI - Stainless steel
Type: MLC - Forked clamping arm, with two flanged washers and clamping screw GN 708.1
GN 820.3 Toggle Clamps, Stainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base Material: NI - Stainless steel
Type: MLC - Forked clamping arm, with two flanged washers and clamping screw GN 708.1 GN 820.3 Toggle Clamps, Stainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base Material: NI - Stainless steel
Type: ML - Forked clamping arm, with two flanged washers GN 820.3 Toggle Clamps, Stainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base Material: NI - Stainless steel

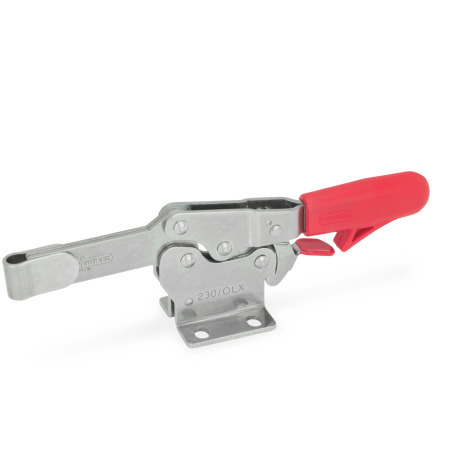

Type: OL - Solid clamping arm, with clasp for welding
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

Toggle clamps GN 820.3 have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.

Stainless steel toggle clamps in the U-bar version with two flanged washers (type ML) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type MLC.

Stainless steel toggle clamps in the type OL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.

Specification

Stainless steelNI AISI 304


All moving parts
Lubricated with special grease


Solid designed plastic handle
Red, oil resistant


Clamping screw GN 708.1, type A

  • Stainless steel AISI 304
  • Rubber thrust pad 85 Shore A

RoHS

Technical drawing

3D
Hide technical drawing
GN 820.3 Toggle Clamps, Stainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base sketch

Article options / Table

Type

MLForked clamping arm, with two flanged washers
MLCForked clamping arm, with two flanged washers and clamping screw GN 708.1
OLSolid clamping arm, with clasp for welding
Show / Hide columns
SizeFH in N
Holding
capacity
a ≈b1b2b3d1d2h1 ≈h2h3h4h5
max.
759002028265,3M 54,5372011195
13010003236406,3M 65,65130,51625,514
23017003744448,5M 86,661,536,5183012,5
Show / Hide columns
Sizel1 ≈l2 ≈l3 ≈l4
max.
l5m1m2m3rs1s2w
Adjustable
range
75118674049,54513,5161942,52415
13017292,55465552622,428,462,52,5517,5
23019610964,57968262631,571,53620

Build & Price

Open 3D configurator
Specifications


Size
Type



Material

Selected Part (How to order)

Total (net)
47,30
plus VAT 8,99 €
gross 56,29 €
In stock
incl. material surcharge: 0,61 €
The material surcharge is already included in the price.
Weight: 0,090 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.
